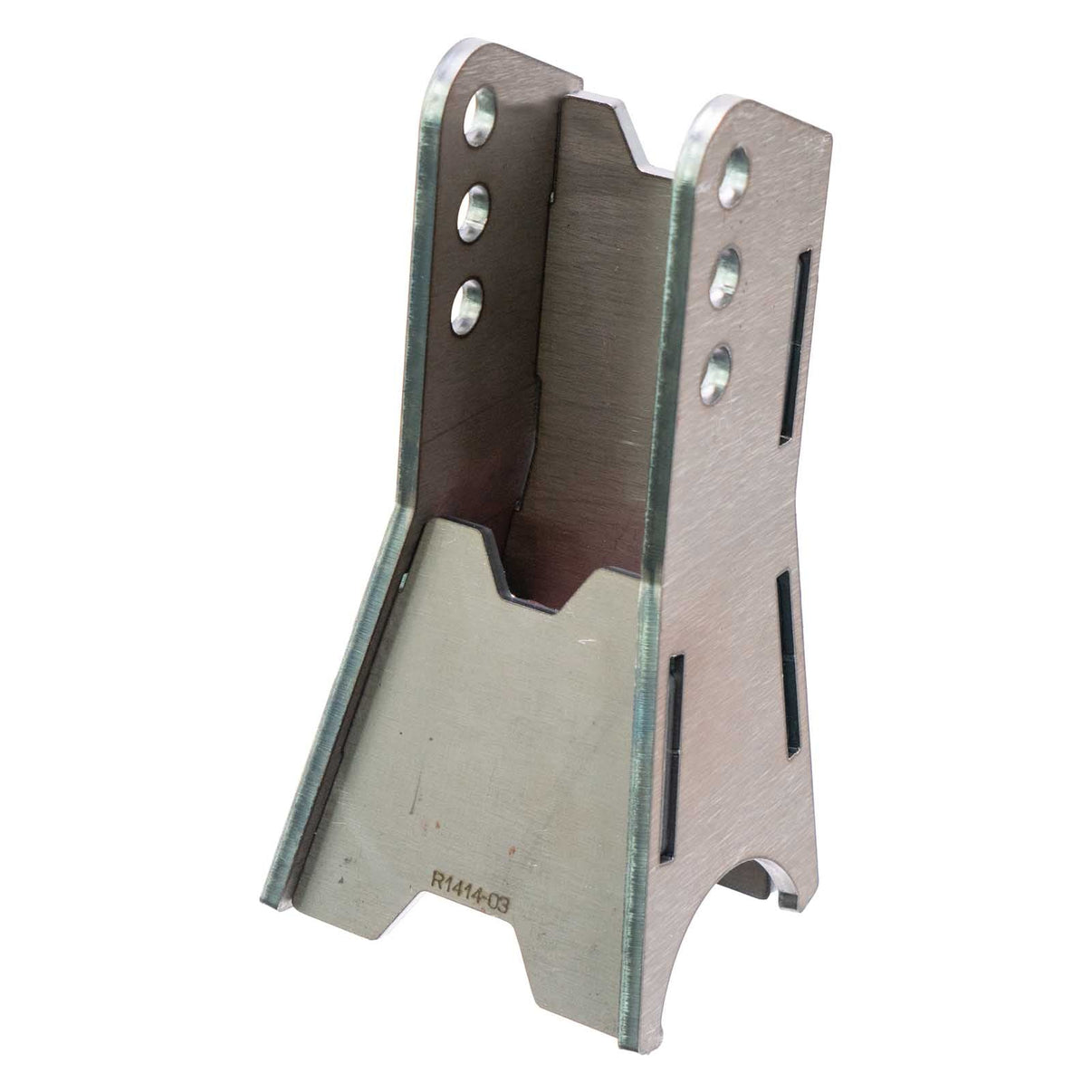

0 Degree Axle Link Tower – 2 5/8" Wide Heavy-Duty Upper Link Bracket for 3" Axle Tubes The RuffStuff 0 Degree Axle Link Tower is a weld-on upper link mount...
The RuffStuff 0 Degree Axle Link Tower is a weld-on upper link mount designed for serious 4-link or triangulated suspension setups. Built from laser-cut 1/4" steel, this bracket delivers strength, adjustability, and modular flexibility — everything you need when dialing in custom suspension geometry.
It features three 9/16" mounting holes spaced at 7", 8", and 9" from the axle tube centerline, giving you precise control over your suspension setup. Designed to fit 3" axle tubes out of the box, the integrated 1/8" nubs can be trimmed for 3.25" tubes. The 2 5/8" bracket width works perfectly with 1-1/4" rod ends — a trail-tested solution for high-stress link systems.
Key Features:
Part Number: R1414
Bracket Width: 2 5/8" (fits 1-1/4" rod ends)
Material: 1/4" thick mild steel (A36)
Mounting Holes: Three 9/16" holes at 7", 8", and 9" from axle centerline
Fits Axle Tubes: 3" OD (can be trimmed to fit 3.25")
Weld-on modular design for easier fitment around center sections or custom axle housings
Made in the USA
Sold individually
Built to take hits and keep rolling — this bracket is made for off-roaders who don’t cut corners.
