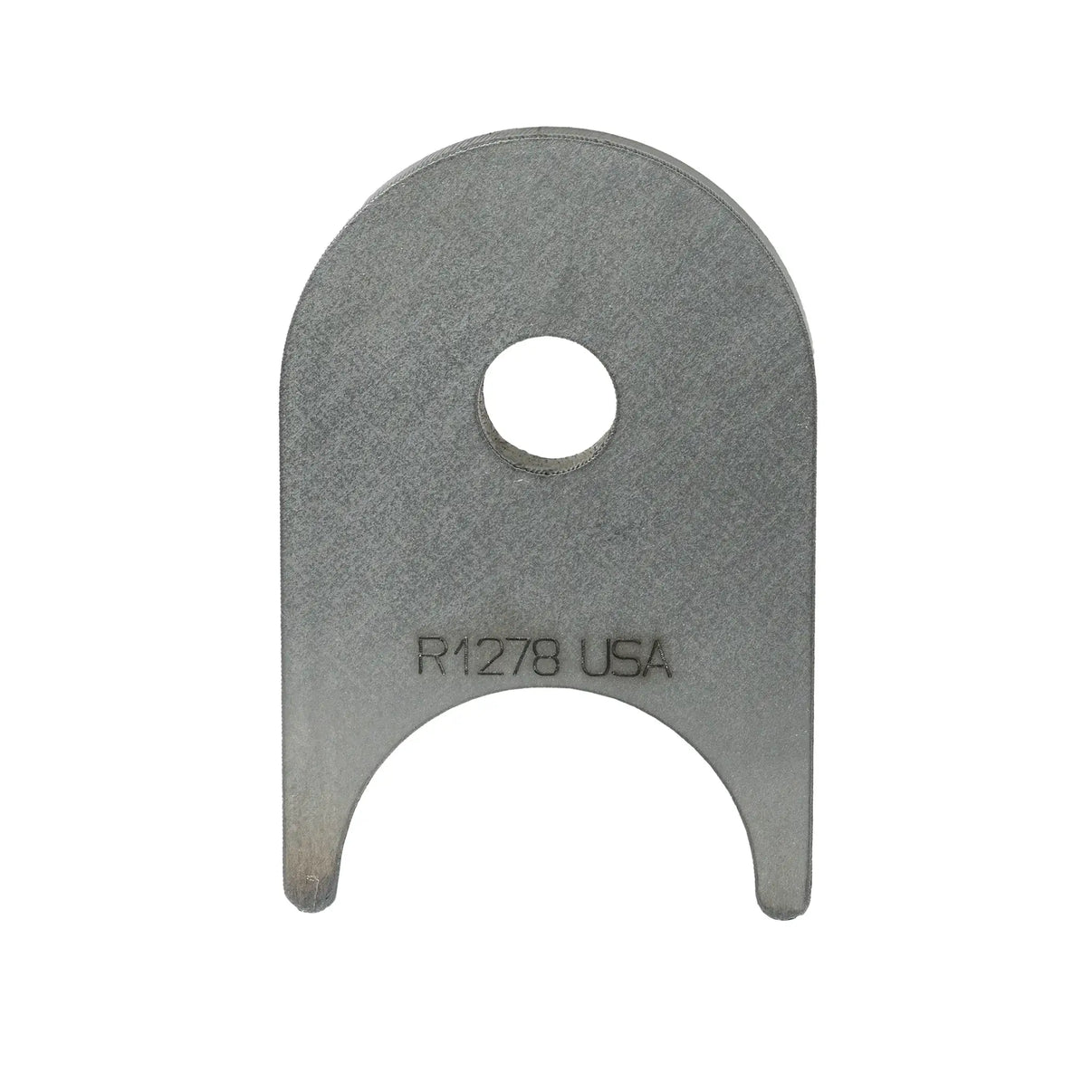

1.75" Short Link Tab Weld-On Suspension Tab for 1.75" Axle Tubes | 3/8" Thick Steel This short link tab is designed to fit 1.75" axle tubes and is easy to...
This short link tab is designed to fit 1.75" axle tubes and is easy to modify for slightly larger or smaller tubing. Cut from 3/8” thick mild steel, it’s built for real-world abuse and delivers the strength needed for demanding off-road suspension setups.
At 1.25" from axle to bolt centerline, this is the shortest of our 1.75" tab lineup — great for tight clearances, upper link mounts, or applications where you need minimal offset. These work well on their own or combined with medium and long tabs to fine-tune suspension geometry. Add a bridge between two if you want to create a custom paired bracket.
Part Number: R1278
Fitment: Designed for 1.75" axle tubes (can be modified to fit others)
Material: 3/8" thick mild steel
Hole Size: .5625" (9/16"), easily drilled larger if needed
Tab Height: 1.25" from axle to bolt centerline
Use Case: Ideal for tight packaging, upper links, and triangulated suspensions
Weld-on design – compact, strong, and versatile
Compatible with other RuffStuff tab sizes for full geometry control
