1.75" Tube Shock Tab Kit – Pair Weld-on strength for clean shock mounts on 1.5" tubing. This 1.75" shock tab kit is designed for mounting shocks to 1.5" outer diameter...
Weld-on strength for clean shock mounts on 1.5" tubing.

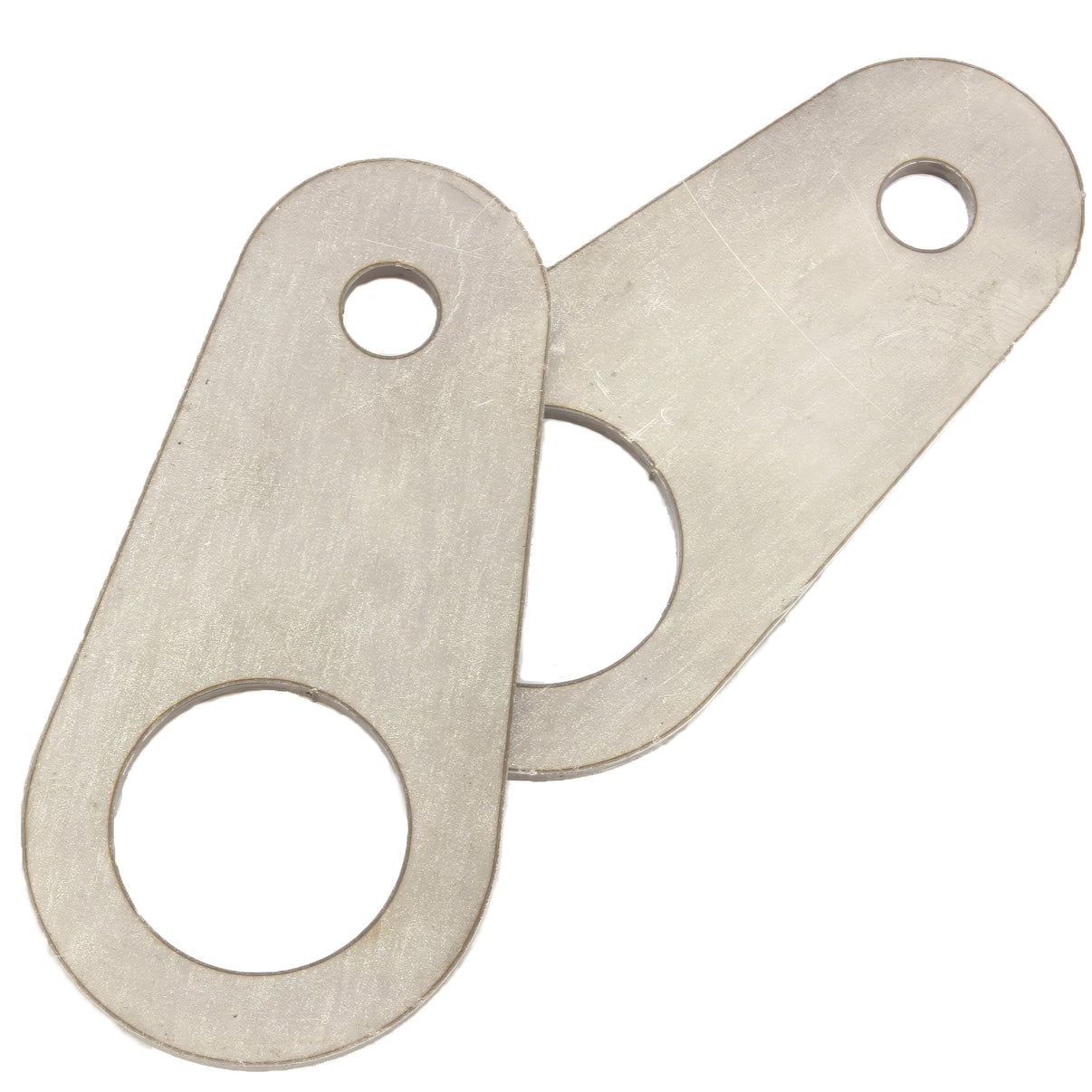

This 1.75" shock tab kit is designed for mounting shocks to 1.5" outer diameter tubing, providing full weld contact for strength and clean fabrication. Each tab is laser-cut from 3/16" mild steel and includes a 1/2" bolt hole for compatibility with most common shock and suspension hardware.
Perfect for builders needing a reliable, compact mounting tab for coilovers, air shocks, or standard shocks in tight areas. The curved base allows these tabs to sit flush on round tubing, creating a high-integrity weld seam across the entire radius. Ideal for link suspension setups, shock towers, and tube frame builds.
Key Features
Part Number: R1679
Material: 3/16" thick mild steel
Bolt Hole: 1/2" diameter – fits most shock bolts
Mounting Radius: 1.75" – optimized for 1.5" OD tubing
Tab Style: Weld-on shock tabs
Sold in pairs
Optional hardware: 1/2" x 3" Grade 8 Bolt and Lock Nut available
