Heavy-duty reinforcement where 14 Bolts need it most.
The 14 Bolt axle is a proven platform, but when you're putting down big horsepower, the factory plug welds on the axle tubes can become a failure point. The RuffStuff Pinion Truss Bridge strengthens that area by tying your axle truss directly into the pinion support—greatly improving structural rigidity and reducing the risk of tube separation under extreme stress.
This bridge is designed to pair with our 14 Bolt Truss but is fully adaptable to most aftermarket or custom-built trusses. The elongated slots on the bridge allow for multiple mounting options—including with or without a pinion guard.
Key Features
Part Number: R1558
Material: 1/4" thick steel – laser-cut and formed
Fitment: Designed for RuffStuff 14 Bolt Truss; adaptable to most custom trusses
Mounting Slots: Compatible with multiple pinion guard brands or none at all

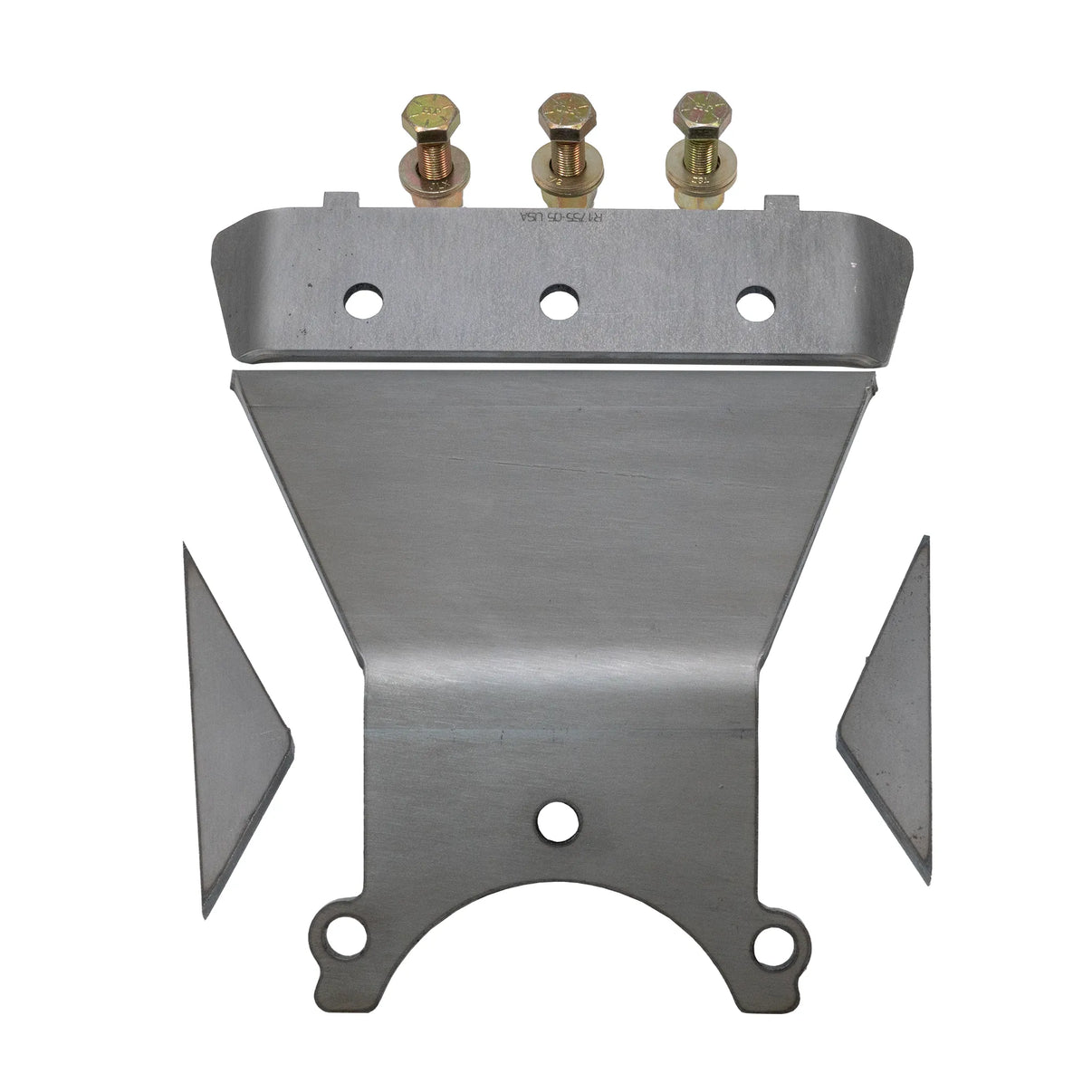

Includes truss bridge, 2 weld-in gussets, and bolts for truss-side connection
Note: Pinion-side hardware not included (GM used multiple thread styles over the years)
Made in the USA
Upgrade Option – Add 14 Bolt Pinion Guard
Add RuffStuff's 14 Bolt Pinion Guard with correct mounting hardware
Protects your yoke and U-joint from rocks and trail damage
Completes the structural tie-in between truss and pinion
