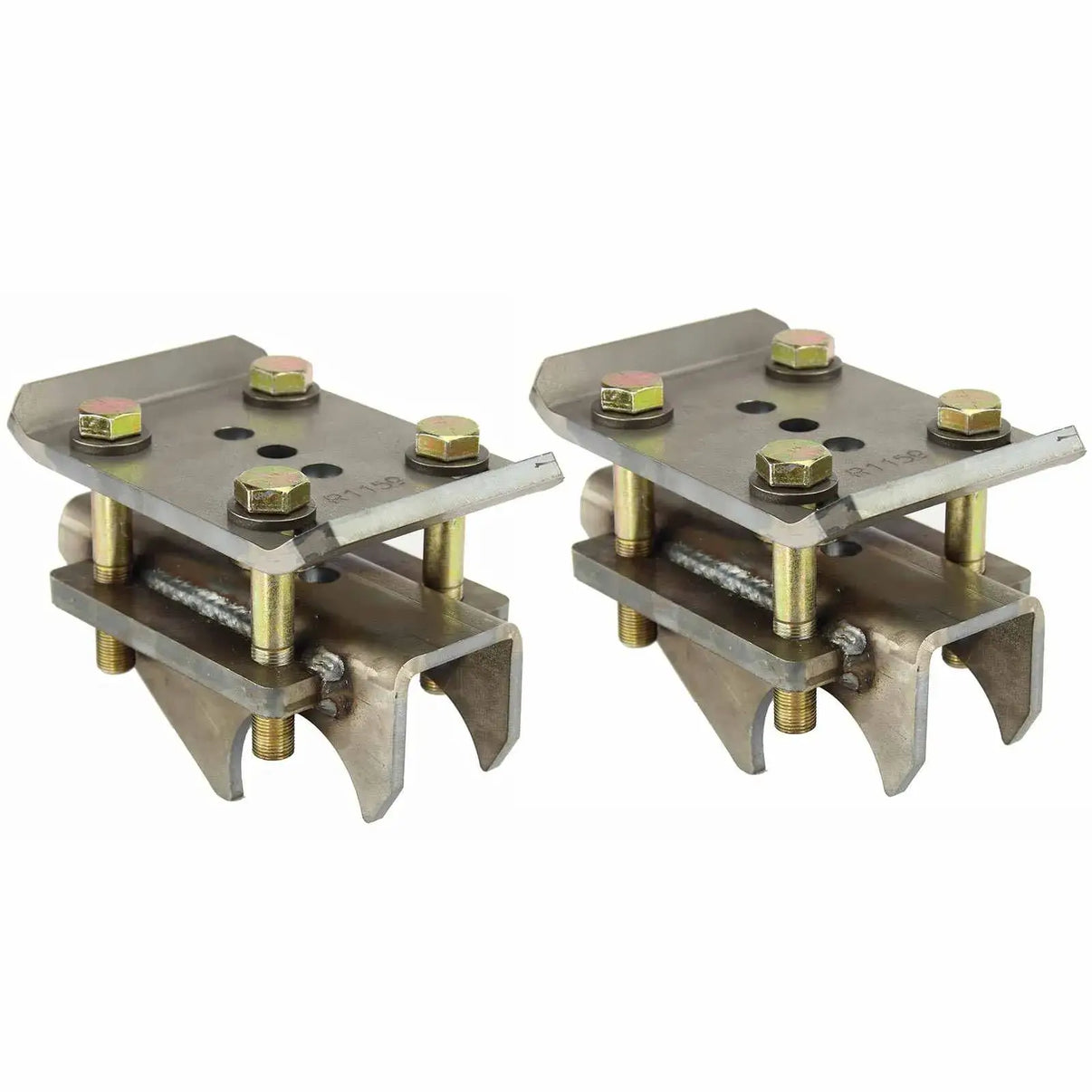

2+ Perch Kit 2.75"-3" Axle Tube Stretch your wheelbase without moving spring or shackle hangers. Looking to stretch your wheelbase without relocating your spring or shackle hangers? The 2+ Perch...
Stretch your wheelbase without moving spring or shackle hangers.
Looking to stretch your wheelbase without relocating your spring or shackle hangers? The 2+ Perch Kit is the quick and effective solution. Designed to work with 2.75" to 3" axle tubes in spring-over setups, this kit lets you move your axle forward or back 1" to 3", giving you the added clearance and approach angle you need without cutting into your frame or hangers.
We’ve combined our proven U-bolt plate design with a reinforced spring perch that includes threaded wings made from 1/2" steel plate. That means solid thread engagement and reliable clamping force on every run. Whether you’re building a crawler, overland rig, or just want better geometry under load, this is the kind of no-nonsense upgrade that makes a difference on and off the trail.
Key Features
Part Number: R2666
Wheelbase Extension: Gain 1"–3" without modifying spring or shackle hangers
Axle Tube Fitment: Designed for 2.75"–3" diameter axle tubes
Threaded Wings: Built from 1/2" plate for superior thread retention
Application: For spring-over axle setups only
Fully welded construction for strength and ease of install
Hardware Included: (8) Grade 8 bolts – 4" x 5/8"
Made in the USA
Installation Tip
Test fit your bolts with your specific spring pack, cut them to proper length if needed, and torque to approximately 90 ft/lbs using Loctite. Always double-check perch alignment before final weld-in.
