3.0" Axle Mount 10 Degree Link Brackets Angled lower link brackets for better anti-squat tuning These axle-mounted link brackets are a great way to build the lower links of any...
Angled lower link brackets for better anti-squat tuning

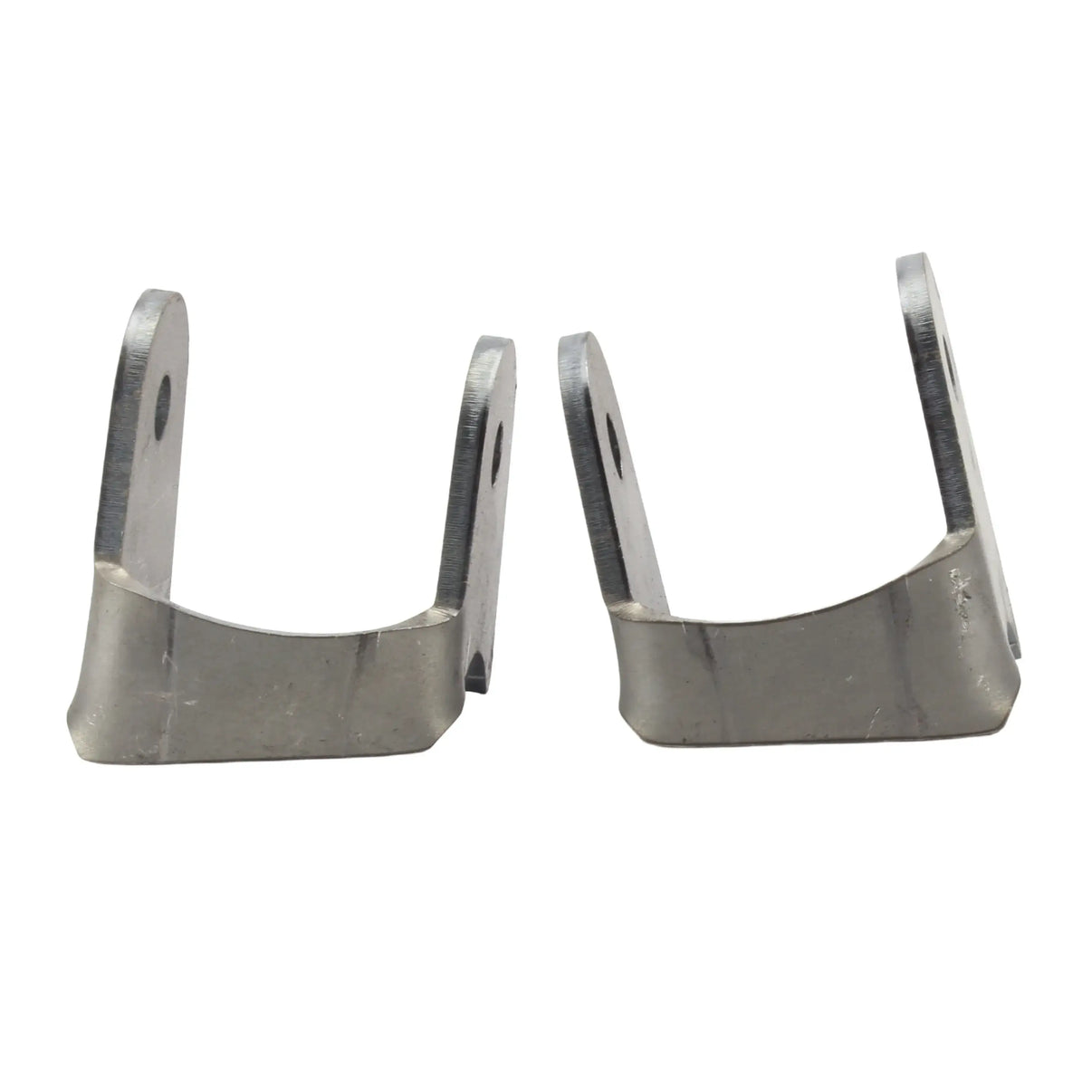

These axle-mounted link brackets are a great way to build the lower links of any 3-link or 4-link suspension system. Cut for a 3.0" axle tube with a built-in 10° angle, they’re perfect for setups that require a bit of link separation or anti-squat tuning. And like most well-designed brackets, they can be adjusted with a grinder and a little time if your axle size or angle needs tweaking. Each bracket is formed from 1/4" HR P&O steel and features an integrated bridge that eliminates weld-induced stress points. Inside width is the common 2.625", and the bolt holes are drilled for 9/16" hardware—easy to drill out if your setup requires something larger.
Key Features
Part Number: R1039
Axle Tube Fitment: Cut for 3.0" tubes (easily modified)
Mounting Angle: 10° built-in offset for optimized suspension geometry
Material: 1/4" HR P&O steel plate with integral bridge for added strength
Bracket Width: 2.625" inner width – works with common rod ends and bushings
Bolt Hole: Drilled for 9/16" (.5625") bolts – easily drilled to other sizes
Application: Lower axle-side link brackets for 3-link or 4-link suspensions
