3 Link Heim and Tube Kit All the heims and tubing—no brackets, no fluff. Looking to build or refresh your own 3 link suspension but already have the brackets handled?...
Looking to build or refresh your own 3 link suspension but already have the brackets handled? Our 3 Link Heim and Tube Kit gives you the core essentials: DOM tubing and rod ends—with zero fluff. It's ideal for experienced builders who are making their own brackets, reworking an existing setup, or just want a bolt-down, weld-ready hardware package without chasing parts one by one.

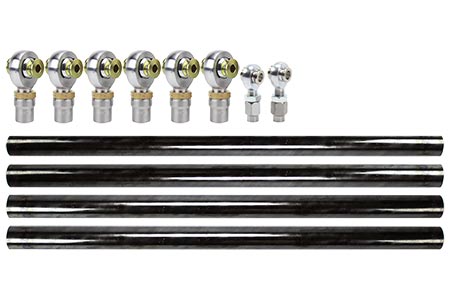

This kit includes three 2.0" x .250" wall DOM links (your choice of 3' or 4' lengths) and one 54" long 1.5" x .250" wall DOM tube. It also comes with six 1.25" and two 7/8" heat-treated chromoly heims—all loaded with jam nuts, weld-in tube adapters, and stainless misalignment spacers. You can select your preferred bore size (9/16", 5/8", or 3/4") for a perfect match to your brackets or tabs.
Key Features
Part Number: R2320
Complete 3 link hardware package—no brackets included
Designed for custom suspension link builds or bracket refresh projects
All rod ends are heat-treated chromoly for durability
Choose your bore size: 9/16", 5/8", or 3/4"
DOM tubing for high-strength link fabrication
What’s Included
(3) RH 1.25" Heims with jam nuts, tube adapters, and misalignment spacers
(3) LH 1.25" Heims with jam nuts, tube adapters, and misalignment spacers
(1) RH 7/8" Heim with jam nut, tube adapter, and misalignment spacers
(1) LH 7/8" Heim with jam nut, tube adapter, and misalignment spacers
(3) DOM Tubes – 2.0" OD x .250" wall – available in 3' or 4' lengths
