3-Link Kit with 1.25" Heims Complete 3-link system—built for hardcore suspension setups. This 3-Link Kit gives you everything you need to build a proven front or rear suspension system—minus the...
Complete 3-link system—built for hardcore suspension setups.
This 3-Link Kit gives you everything you need to build a proven front or rear suspension system—minus the DOM tubing. Built around six heat-treated 1.25" chromoly heims, this setup is what we’ve trusted on our own rigs through some of the gnarliest trails. Whether you’re building a comp buggy, trail crawler, or custom rear link setup, this kit brings the strength and versatility you need to get it done right.
The included panhard setup uses 7/8" heims and our offset axle panhard bracket to help dial in steering geometry on full hydraulic or mechanical setups. And since all brackets are built around 9/16" hardware, you won’t need to modify a thing to match our bolt kit. Just weld it up and hit the trail.
Key Features
Part Number: R1036
Includes six 1.25" chromoly rod ends with jam nuts and tube adapters
Fully loaded panhard setup with brackets and 7/8" heims
All brackets built for 9/16" hardware – no drilling or sizing needed
Compatible with 1.5" ID x .250" wall DOM tubing (not included)

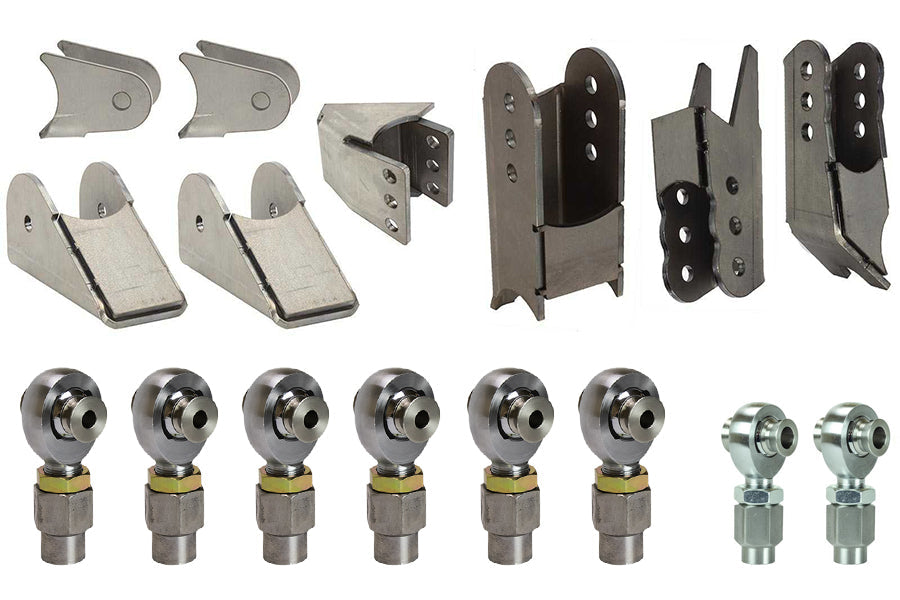

What’s Included
3x RH 1.25" Chromoly Heims with jam nuts and weld-in bungs
3x LH 1.25" Chromoly Heims with jam nuts and weld-in bungs
12x High Misalignment Spacers (9/16” ID, 2.625” width)
2x 7/8" Heims for Panhard Bar with 9/16” misalignment spacers
1x Offset Axle Panhard Bracket
1x Frame Panhard Bracket (inside or outside mount)
2x Axle-Side Lower Link Brackets (0°)
2x Frame-Side Link Brackets
1x Adjustable Upper Axle Link Tower
1x Upper Link Bracket (choose adjustable or 3-leg style)
Tech Tip: Only lubricate rod ends with Tri-Flow. Using WD-40, PB Blaster, or other petroleum-based products can damage the liner and will void the warranty.
