3" Wide Bushing Lift Shackles Heavy-duty shackles built for shackle flips and 3" wide springs. Ruffstuff’s 3" Wide Bushing Lift Shackles are built for serious use on rigs that see...
Heavy-duty shackles built for shackle flips and 3" wide springs.

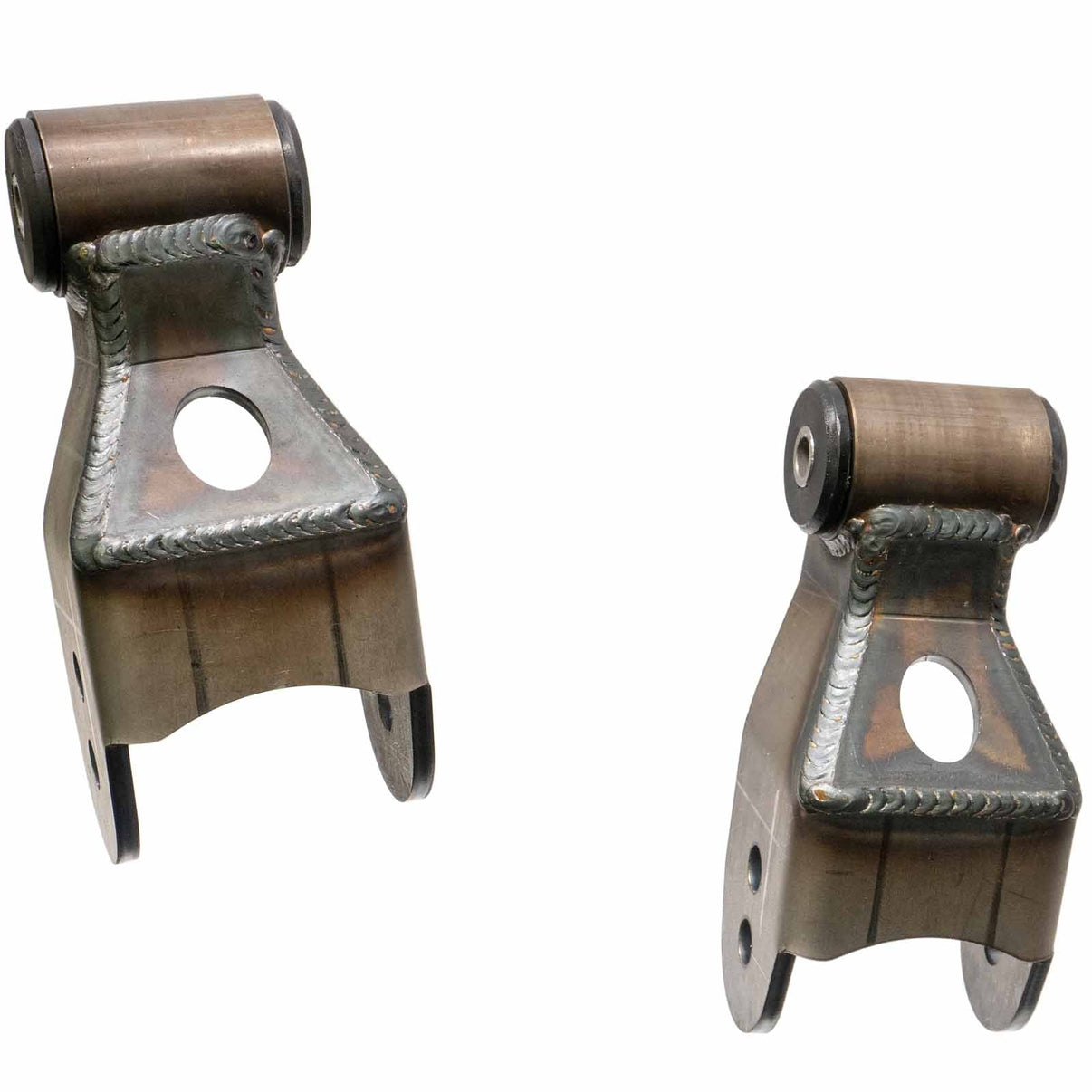

Ruffstuff’s 3" Wide Bushing Lift Shackles are built for serious use on rigs that see real terrain. Designed for off-roaders who need dependable articulation and strength, these shackles are laser-cut and precision bent from 3/16" mild steel. The hole centers are set at 5" and 6" to offer two levels of lift and tuning flexibility, while clearance cuts around the bushing provide uninhibited movement throughout suspension travel.
These are ideal for use with shackle flips or custom hangers, and they’re compatible with leaf springs that measure 3" wide at the mounting eyelet. Whether you're crawling, flexing, or loaded down on an expedition, these will hold up without deflection.
Key Features
Part Number: R2650-A
Material: 3/16" mild steel – laser cut and formed
Shackle Lengths: 5" and 6" hole-to-hole
Mounting Holes: 9/16"
Fitment: Designed for springs with 3" wide eyelet mount
Application: Perfect for shackle flips or custom hanger setups
What's Included
1 Pair of 3" Wide Shackles (includes all necessary hardware)
Note: Use only silicone or lithium-based grease on polyurethane bushings. Petroleum-based products will break them down and void the warranty.
