4 Link Kit - Dual Triangulated Complete dual triangulated suspension kit for custom builds Building a dual triangulated 4-link suspension doesn't have to be complicated or expensive. This kit takes...
Complete dual triangulated suspension kit for custom builds
Building a dual triangulated 4-link suspension doesn't have to be complicated or expensive. This kit takes the guesswork out of geometry so you can focus on getting your rig dialed in. Compatible with coilovers, emulsion shocks, or coil springs, it's ready for anything from a fresh build to a trail-proven upgrade. Includes all the brackets, heims, hardware, and misalignments you need to make it happen—minus the tubing. Just note—you may need to modify your brake lines, so check out our brake line section for the right fittings, tabs, and flex lines.
Key Features
Part Number: R1431
Designed for dual triangulated 4-link suspension setups
Compatible with coilovers, emulsion shocks, or coil springs
Includes frame and axle brackets, heims, hardware, and misalignments—minus the tubing
Ideal for custom builds or trail-use upgrades

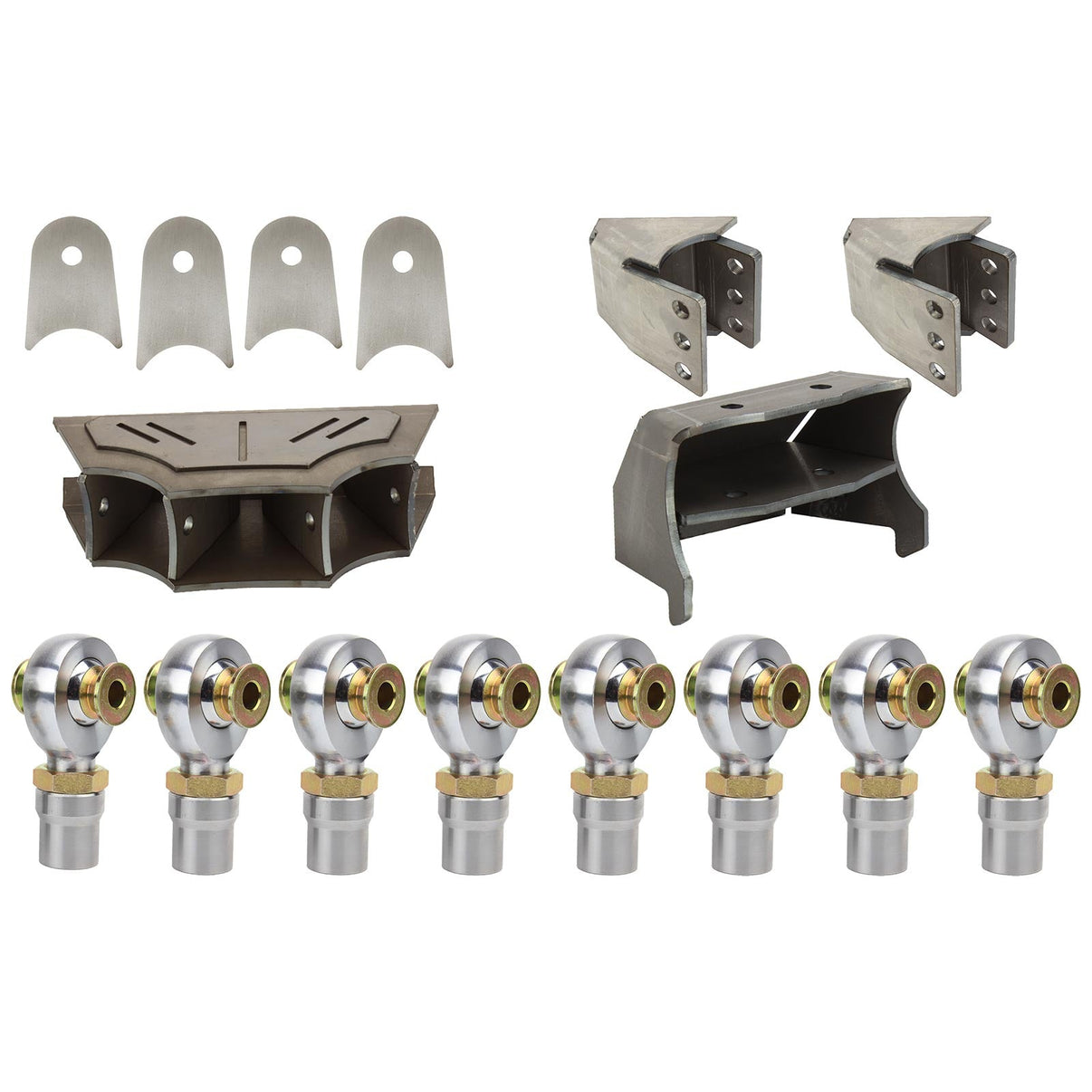

What's Included in This Kit
4 - RH 1.25" Heims with jam nuts and weld-in tube adapters
4 - LH 1.25" Heims with jam nuts and weld-in tube adapters
16 - Stainless steel misalignment spacers
2 - Upper frame link brackets
4 - Upper link tabs or 1 upper link bracket (varies by configuration)
1 - Lower dual-triangulated link bracket
2 - Small 3" link tabs
2 - Large 3" link tabs
1 - Complete grade 8 bolt kit
Available Kit Options
Truss Option: No Truss Add Axle Truss
Axle Upper Link: Flat Link Tabs Upper 4 Link Bracket Upper Inside Link Bracket
Upper Link Mount: 3 Legged Link Adjustable Upper Link
