4 Link Kit Lowers Triangulated

4 Link Kit - Lowers Triangulated

Single triangulated 4-link kit with angled lower links for low-slung builds.

The 4 Link Kit Lowers Triangulated is designed for crawlers and trail rigs where a low center of gravity is critical. This kit features triangulated lower links that angle inward toward the axle, eliminating the need for a panhard bar or track bar while maintaining proper lateral axle control. The upper links run parallel for simple mounting and adjustment. Perfect for builds where frame clearance is limited or you want to keep the suspension as low as possible without sacrificing strength or performance. Includes everything you need to build your 4-link, minus the tubing.

This kit includes heavy-duty 1.25" heat-treated Chromoly heim joints with 5/8"-18 threads for maximum strength and adjustability. The adjustable brackets allow you to fine-tune link angles and suspension geometry for optimal performance. All components are designed to work together for a complete 4-link setup that delivers reliable articulation and control in extreme off-road conditions.

Key Features

• Part Number: R1427
• Universal fitment for custom 4-link builds
• Triangulated lower links eliminate need for panhard bar
• Parallel upper links for simple mounting
• 1.25" heat-treated Chromoly heim joints with 5/8"-18 threads
• Adjustable brackets for precise geometry tuning
• Ideal for low-slung crawlers and trail rigs

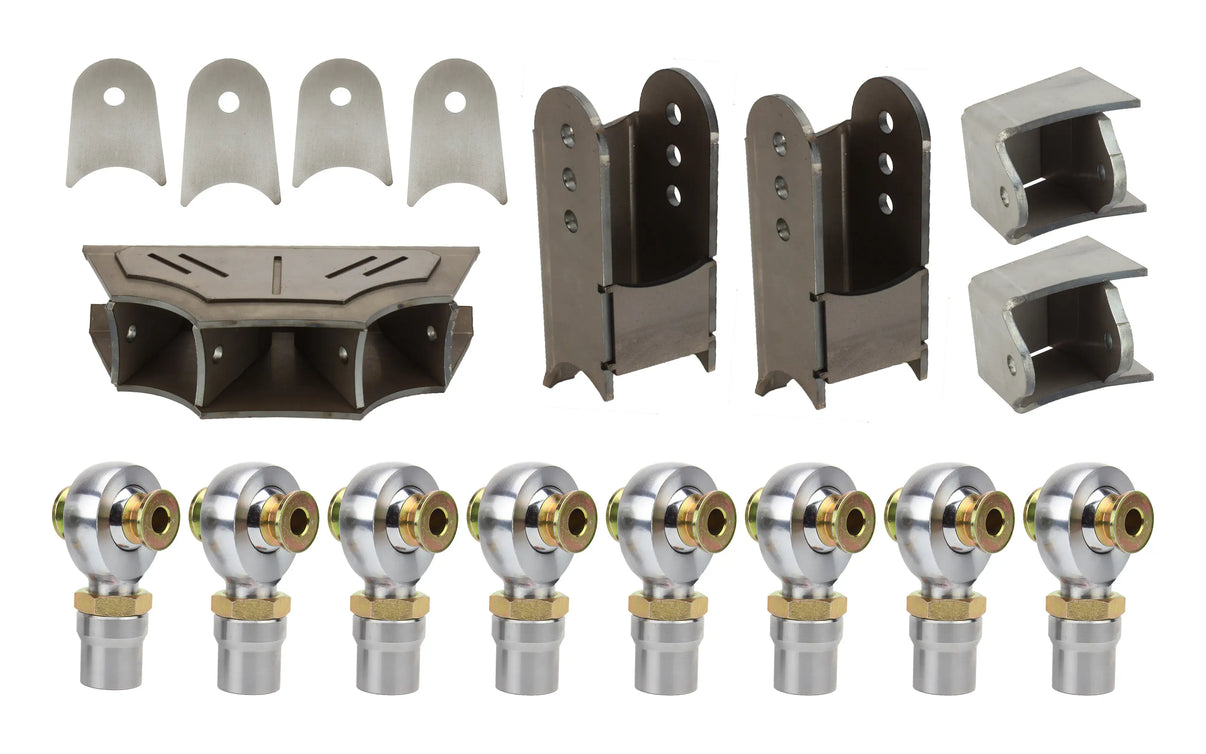

What's Included

• 4 - RH 1.25" Chromoly Heims with jam nuts and weld-in tube adapters
• 4 - LH 1.25" Chromoly Heims with jam nuts and weld-in tube adapters
• 16 - Stainless steel misalignment spacers
• 2 - Upper frame link brackets
• 2 - Lower frame link brackets (triangulated)
• 2 - Upper axle link brackets
• 2 - Lower axle link brackets
• 1 - Complete grade 8 bolt kit

Notes

• Welding required for bracket installation to frame and axle
• Professional fabrication skills recommended for proper suspension geometry setup
