5/8 Rod End Kit

5/8" Rod End Kit

Complete 5/8" chromoly rod end setup for steering or suspension

This 5/8" Rod End Kit includes everything you need for a strong, adjustable, and reliable joint in your suspension or steering system. The heat-treated chromoly rod end is rated to over 17,900 lbs of static radial load, making it a great fit for trail rigs, crawlers, or daily-driven builds. Choose your misalignment spacer size to get the articulation or tight fitment you want, and select the correct tube adapter to match your build. Precision-machined components ensure smooth performance and easy assembly.

Key Features

• Part Number: R2112
• Heat-treated chromoly 5/8" rod end
• Rated to over 17,900 lbs static radial load
• Includes tube adapter for 3/4" or 1" ID tubing
• Includes jam nut
• Choice of misalignment spacer options (5/8"-5/8" or 5/8"-1/2")
• Mounts to a 1.5" wide bracket
• Proudly made in the USA

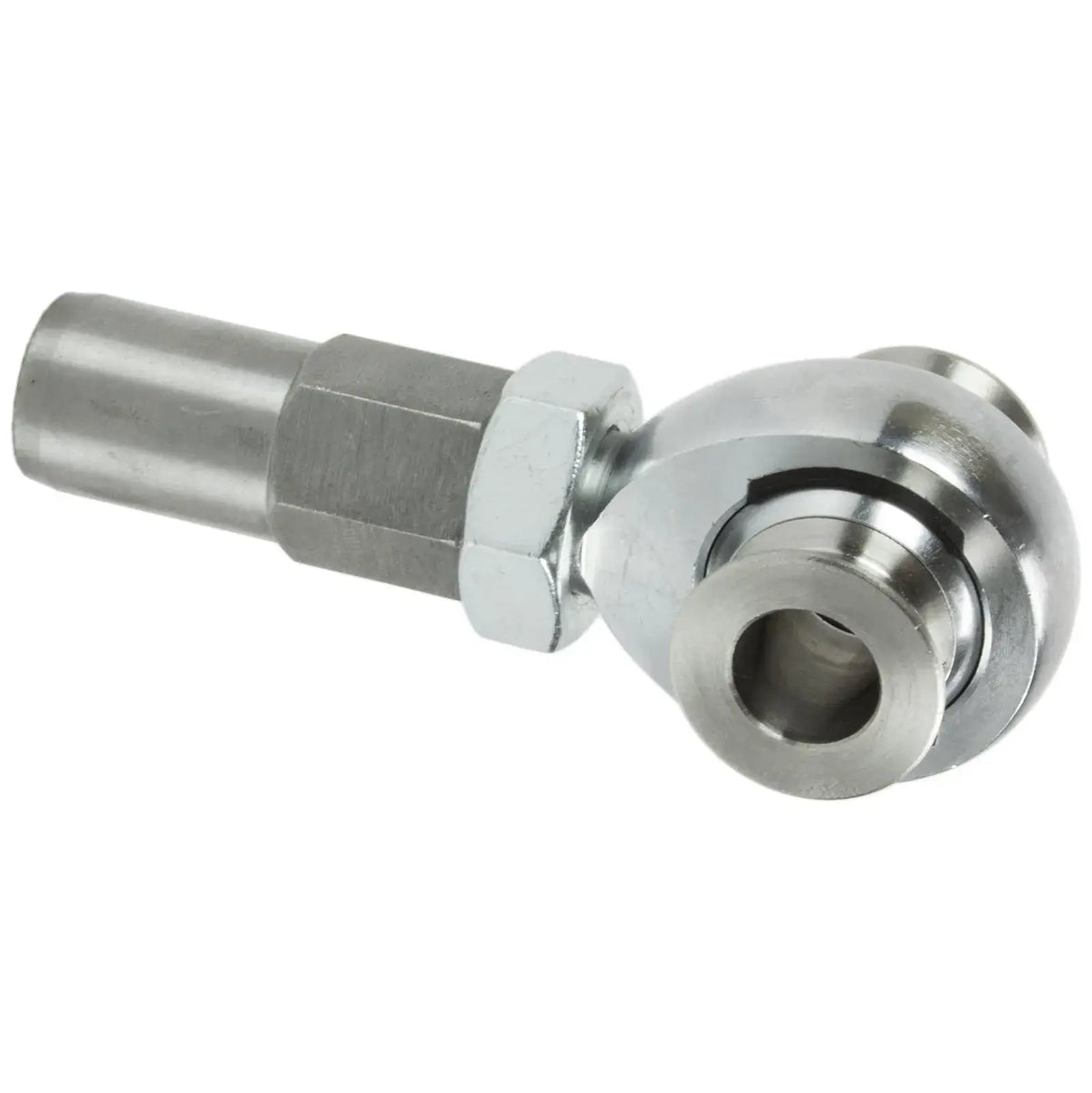

What's Included in This Kit

• 1 - 5/8" x 5/8" Chromoly Rod End (Left or Right Hand Thread)
• 1 - Tube Adapter (for 3/4" or 1" ID tube)
• 1 - 5/8"-18 Jam Nut
• 2 - Stainless Misalignment Spacers (choose 5/8"-1/2" or 5/8"-5/8")

Available Kit Options

Thread Direction:
Left Hand
Right Hand

Tube Adapter Size:
3/4" ID
1" ID

Misalignment Options:
5/8"-1/2" Stainless (30° articulation)
5/8"-5/8" Spacer (limited misalignment)

Rod End Maintenance Tip

Only use Tri-Flow to service rod ends. Using WD-40, PB Blaster, or similar products will cause internal damage and void the warranty.

Tips to Help Prevent Any Seized or Warped Threads

• Correctly adjust welder settings and start your puddle on the tube (too much heat will warp the threads).
• Do not weld the tube adapter with the rod end threaded inside.
• Wait until fully cooled before threading rod ends into adapters.
