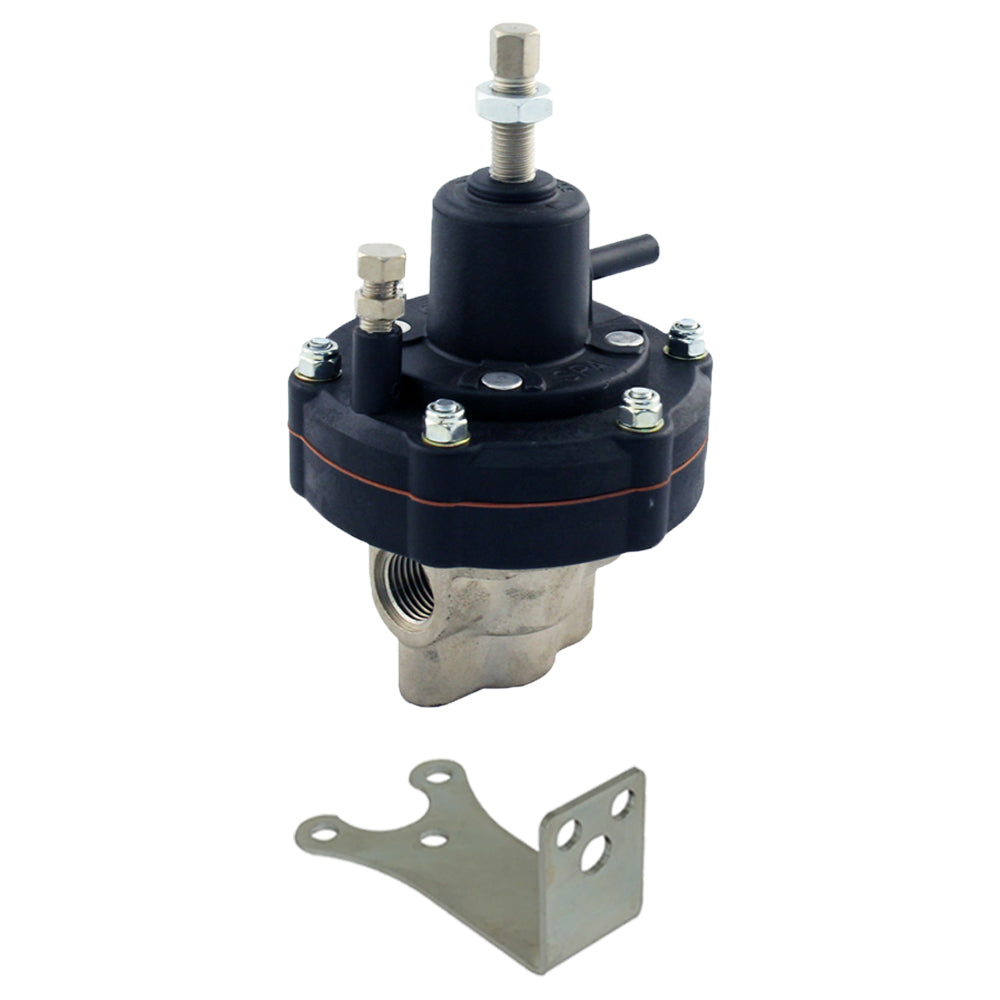

6AN 10-100 PSI Fuel management unit

• SPA Turbo Composite High Flow Fuel management unit 10 to 100 PSI.

• The composite FMU line are designed to easily adapt to any fuel system.

• Internally, the regulators use a special diaphragm seal that guarantees safety and quality.

• This is the high volume, high pressure unit.

• Adjustable from 10 to 100 psi.

• This  FMU can be adjusted to meet the needs of most of systems.

• FMU has a built-in FPR, so you can adjust the line pressure and adjust the raising rate.

• All SPA Turbo Fuel Pressure Regulators are E85, 100% Ethanol and methanol safe.

• 2x 6AN (9/16" x 18TPI thread) inlet and 1x 6AN (9/16" x 18 TPI thread) outlet fuel ports and 1/4” vacuum/boost port.

• Adjustable 10 to 100 psi fuel pressure.

• 14:1 adjustable rising rate.

Fuel pressure regulator bracket

• Allows perfect fixation of the fuel pressure regulator in the desired location.

• Fits all SPA Turbo fuel pressure regulator.

• Can also be used on other fuel pressure regulator with fixing holes as described in the "Technical Drawings" tab.

• Made of high quality galvanized steel.
