797 Performance 15-Inch Rear Brake Conversion Kit Upgrade your Charger, Challenger, Chrysler 300, or Dodge Magnum for compatible 15-inch rear wheel fitment with the 797 Performance Rear Brake Conversion Kit....
Upgrade your Charger, Challenger, Chrysler 300, or Dodge Magnum for compatible 15-inch rear wheel fitment with the 797 Performance Rear Brake Conversion Kit. This system replaces the large factory rear brake assembly with a compact Wilwood-based setup designed for dedicated race and off-road applications.
This kit is designed exclusively for vehicles originally equipped with four-piston factory rear Brembo calipers.

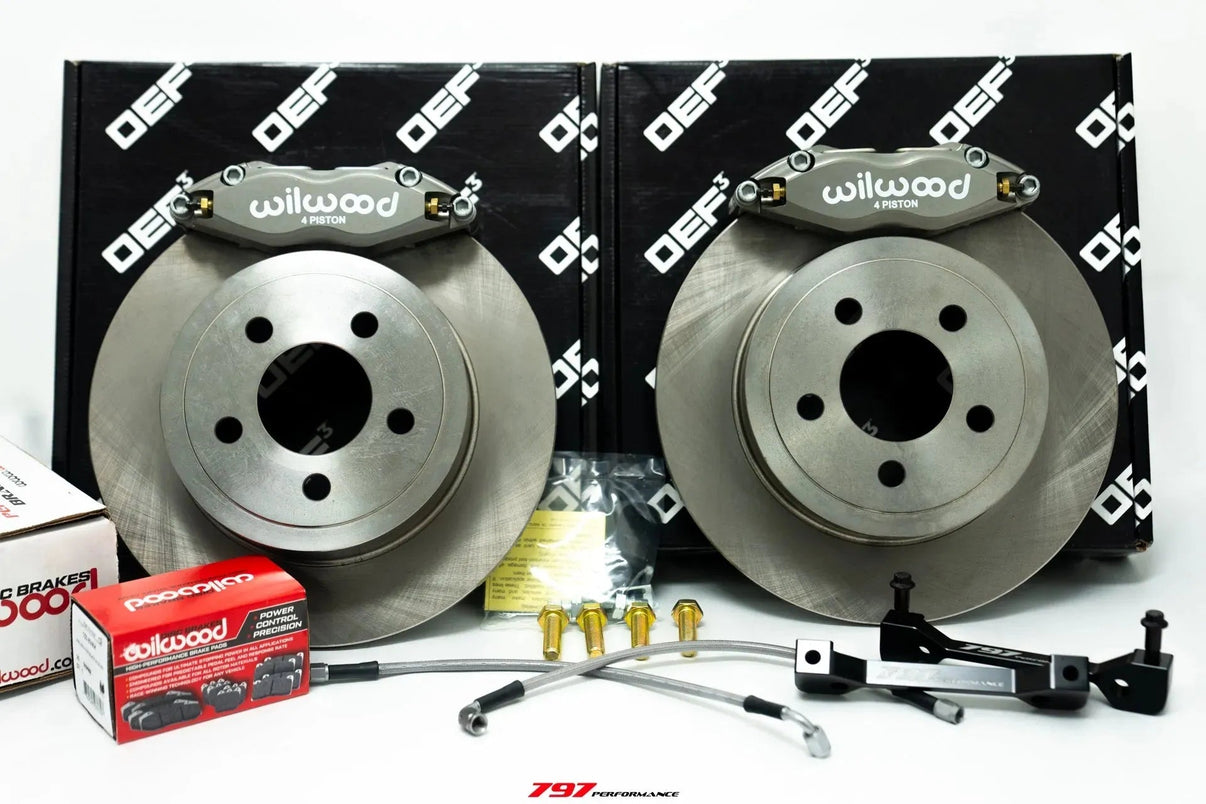

Kit Includes
6061-T6 black-anodized caliper mounting brackets
ARP caliper mounting bolts
Grade 10.9 bracket-to-knuckle mounting bolts
Wilwood radial-mount brake calipers in your selected finish
Custom brake rotors in standard blank or non-directional slotted configuration
Wilwood BP-10 brake pads
Wilwood stainless-steel brake-line kit
Vehicle Requirements
Compatible Charger, Challenger, Chrysler 300, or Dodge Magnum
Vehicle must have been factory-equipped with four-piston rear Brembo calipers
AAD Performance rear toe links and compatible end links are required
Professional installation is strongly recommended
Important Installation Information
Installation requires permanent modification of factory components. Grinding of the factory knuckle is required for most installations. The factory sway-bar end-link mounting boss must also be cut down and smoothed to provide the necessary clearance.
Factory end links cannot be reused. The vehicle must be equipped with AAD Performance rear toe links and suitable end links, or an equivalent compatible mounting arrangement.
Widebody vehicles may still experience sway-bar clearance limitations because of the size of the factory sway bar. Some 15-inch wheels may not clear the end links because of the wheel's drop-center profile. Wheel and suspension clearance must be verified before operating the vehicle.
THIS IS A RACE-ONLY PRODUCT INTENDED SOLELY FOR COMPETITION OR OFF-ROAD USE.
This brake conversion kit is not DOT approved, although individual components may carry their own approvals. By purchasing and installing this product, the vehicle owner and installer acknowledge that the vehicle is intended for dedicated competition or off-road use and assume all responsibility and liability associated with its installation and operation.
Installation or use of this product on a street-driven vehicle may violate local, state, or federal laws. It is the purchaser's responsibility to confirm compliance with all applicable regulations.
Brake conversion kits are built to order and are not eligible for returns or cancellations. All sales are final.
