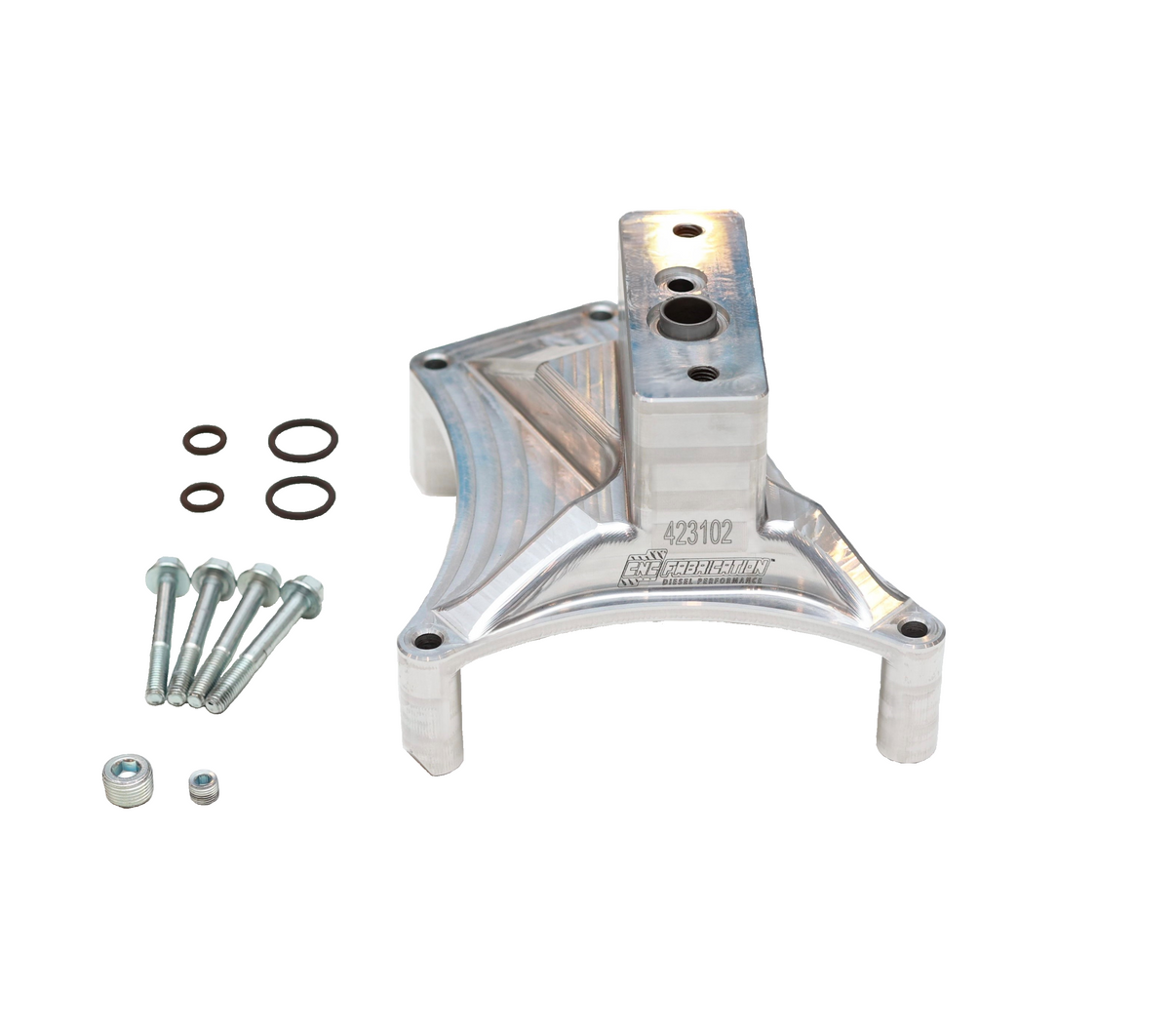

CNC Fabrication Model 423102 Upgrade your turbo system with the CNC Fabrication Non-EBPV Turbo Pedestal, specifically designed for the 1999.5-2003 7.3L Powerstroke engine. Crafted from aircraft-quality billet 6061 aluminum, this...
Upgrade your turbo system with the CNC Fabrication Non-EBPV Turbo Pedestal, specifically designed for the 1999.5-2003 7.3L Powerstroke engine. Crafted from aircraft-quality billet 6061 aluminum, this one-piece construction eliminates common oil leaks caused by worn factory pedestal actuator arm seals, ensuring a more reliable performance.
The innovative design removes the back plate seal and actuator arm seal, providing a cleaner installation process and less hassle down the line. By adding a NON-EBPV (High Flow Outlet), you’ll benefit from lowered exhaust gas temperatures (EGTs), enhancing both efficiency and longevity of your engine.
Manufactured in-house on state-of-the-art Hurco milling centers, this one-piece turbo pedestal not only boasts superior craftsmanship but also allows for easier turbo and up-pipe removal and installation due to its optimized clearance.
Included are two sets of durable Viton o-rings and new mounting feet bolts, ensuring you have everything needed for a seamless upgrade. Elevate your truck’s performance with the billet CNC Fab Non-EBPV Turbo Pedestal, a smart choice for any serious 7.3L enthusiast!
Features: Eliminates the back plate seal and actuator arm seal Aircraft quality billet 6061 aluminum One piece design Made In-house on our Hurco milling centers Adding the Non-EBPV (aka High Flow Outlet) lowers EGT's More room to remove/install turbo and turbo up pipes 99.5-03 model years only 2 sets of Viton o-rings New mounting feet bolts
