Aeromotive 64-68 Mustang Stealth Fuel Tank

Aeromotive 64-68 Mustang Stealth Fuel Tank

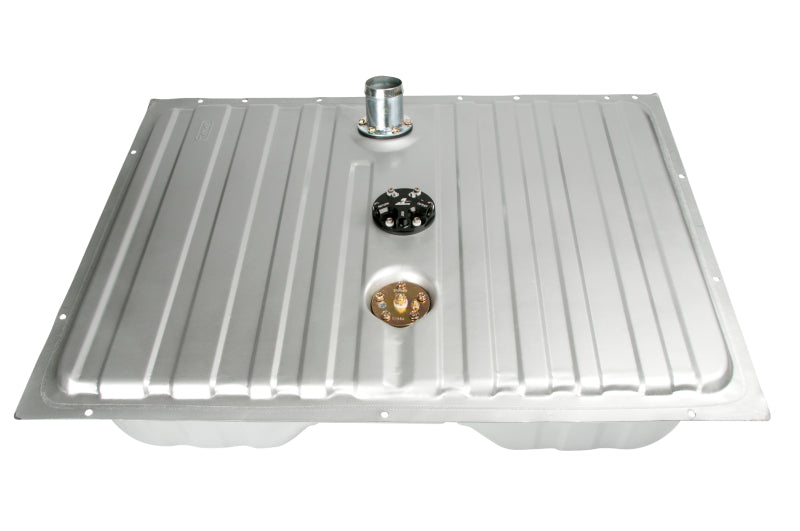

These Aeromotive 1964-68 1st Gen Mustang Stealth fuel tanks feature an Aeromotive 340 Stealth electric fuel pump mounted to a billet aluminum, black anodized hanger assembly. The 340 Stealth electric fuel pumps boast an impressive 340 lph flow and use a turbine pump mechanism for increased durability and performance. The Aeromotive 1964-68 Mustang Stealth fuel tanks also features an innovative baffling/tray system to control fuel slosh and keep the 340 Stealth fuel pump submerged ensuring consistent pump performance even at low fuel levels and extreme driving conditions. The tanks include a Ford 73-10 ohm sending unit that comes preinstalled, pre-pump filter sock, internal return line tubing, and three AN ORB ports?one for the feed line, one for the return line, and one for the vent. For extra protection, the tanks are silver powdercoated for maximum durability.

For more details and specs including recommended parts and systems diagrams, visit the 1st Gen Mustang Stealth page HERE

Mustang Stealth Fuel Tanks feature:
P/N 18697 Stamped Steel Fuel Tank fits 1964-1968 Ford Mustangs
Silver Metallic Painted finish
EFI-style internal baffling
73-10 Ohm Universal Fuel Level Sending Unit
Bolt-On Flanged Filler Neck Adapter
60 degree Universal Rubber Filler Neck
Black Anodized Pump Hanger Assembly
340 Stealth Fuel Pump (P/N 11140)
Pre-Pump Filter Sock Assembly
(3) ORB-06 Ports ? Outlet, Return and Vent

340 Stealth Tank SPECS:

Fuel Injected Engines:

Up to 850 HP naturally aspirated

Up to 700 HP forced air induction

Carbureted Engines:

Up to 1000 HP naturally aspirated

Up to 800 HP forced air induction


Note: 16 Gallons, same capacity as stock.
