Antiwrap/Traction Bar Axle End Kit

Antiwrap / Traction Bar Axle End Kit

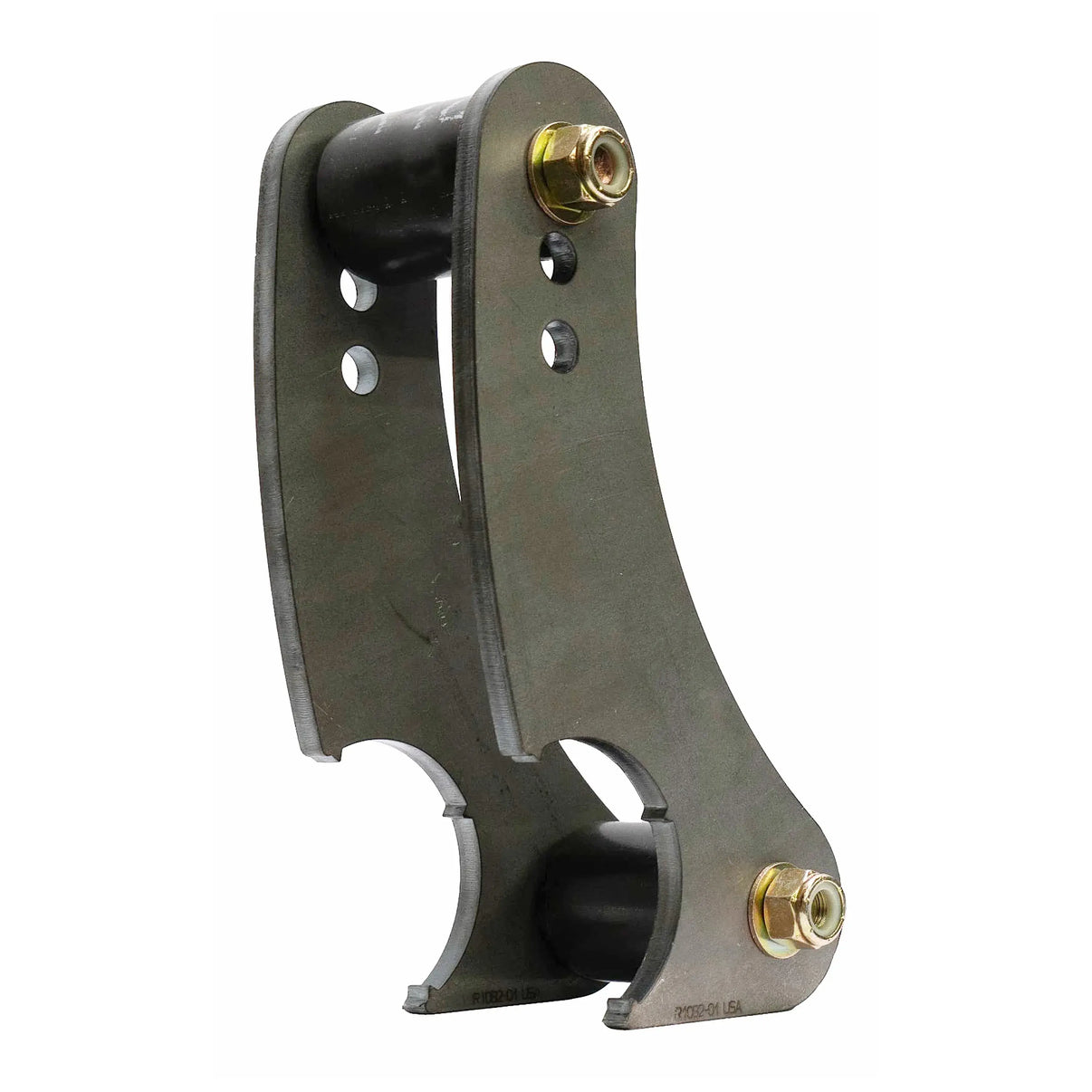

Heavy-duty axle mount kit for traction and antiwrap bars

This axle end kit is built for serious off-road traction bar setups. Featuring two 3/8" thick A36 steel plates with 9/16" bolt holes spaced 8" apart, these plates are radiused to fit a 3" axle tube for maximum weld contact and strength. Includes DOM bushed sleeves for a 2 5/8" mounting width, making it ready for high-load applications in custom suspension builds.

Key Features

• Part Number: R1083
• 3/8" thick A36 steel plates for maximum strength
• Radiused to fit a 3" axle tube
• 9/16" bolt holes spaced 8" apart
• Ideal for traction bar and antiwrap setups

What's Included in This Kit

• (2) Main plates for a 3" axle tube, 3/8" thick A36 steel
• (2) Bushed DOM sleeves (2 5/8" wide)
