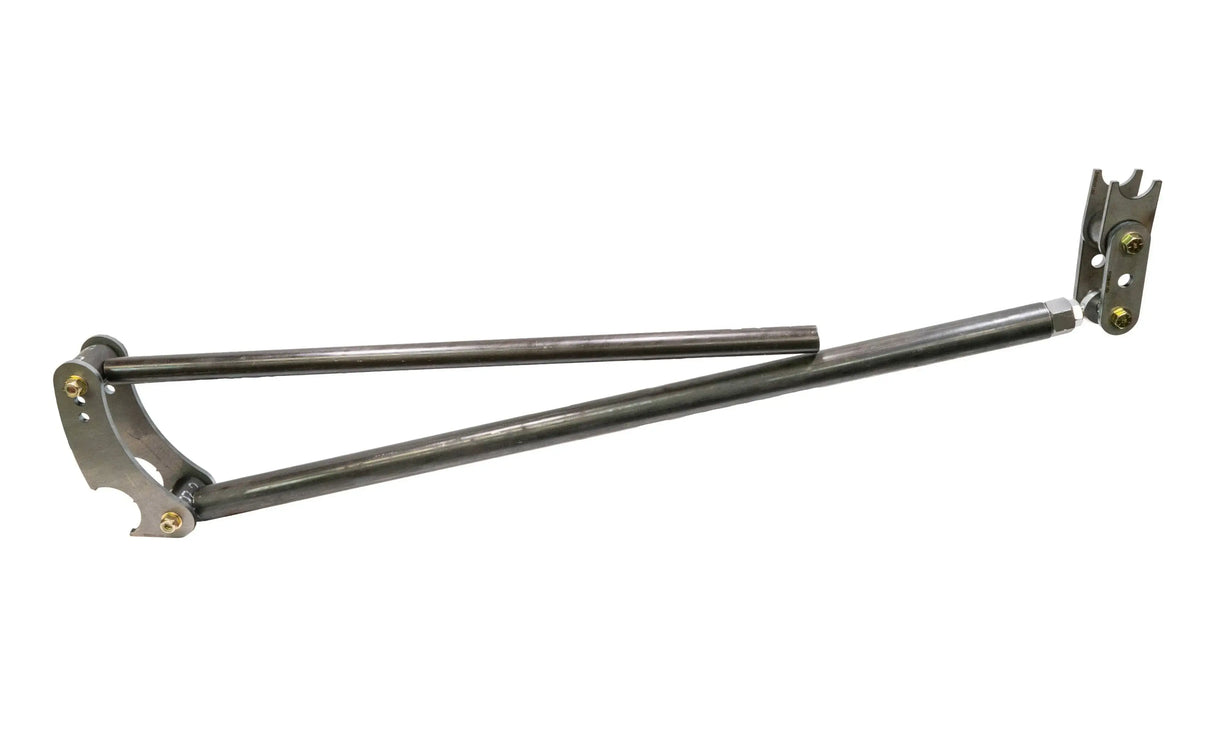

Antiwrap/Traction Bar Kit

Antiwrap / Traction Bar Complete Kit

Ultimate heavy-duty antiwrap and traction bar solution

This kit is built to handle extreme off-road abuse, with beefy 3/8" thick main plates and .250" wall tubing throughout. Designed for strength and durability, it includes everything you need for a complete traction bar system. Frame mounting tabs are radiused for 1.75" diameter tube, and all components come unwelded for maximum flexibility in custom fabrication. Multiple tube length and shackle length options make this kit adaptable to your build.

Key Features

• Part Number: R1349
• 3/8" thick main plates for maximum durability
• .250" wall DOM tubing for unmatched strength
• Radiused frame tabs for 1.75" diameter tube
• DIY kit – comes unwelded for custom fabrication

What's Included in This Kit

• (2) Main plates for a 3" axle tube
• (3) Bushed DOM sleeves (2 5/8" wide)
• (2) 1/4" thick brackets for mounting bushing to chassis
• (4) 4.5" x 9/16" bolts
• (2) Baby or 4" shackles
• (1) 7/8" x 3/4" rod end
• (1) 7/8" jam nut
• (1) 7/8" tube adapter for 1.5" tube ID
• (2) 3/4"-9/16" misalignment spacers (2 5/8" wide)
• (1) 3' x 2" x .25" wall DOM tube (lower)
• (1) 3' x 1.5" x .25" wall DOM tube (upper)

Kit Variations

Shackle Options

• Baby Shackle
• 4" Shackle

Lower Tube Options

• 3' of 2" x .25" DOM
• 4' of 2" x .25" DOM
• 5' of 2" x .25" DOM
• No Tubing

Upper Tube Options

• 3' of 1.5" x .25" DOM
• 4' of 1.5" x .25" DOM
• No Tubing
