Description
FUNCTION:

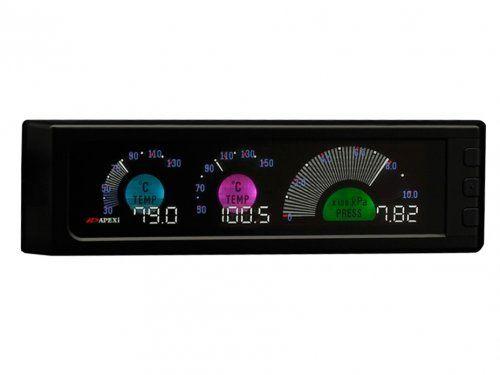

A New Bi-planer VFD multi-purpose digital meter to replace and visually enhance traditional analog meters.
FEATURES:
- Fits in standard size single din location
- Multiple display function to monitor two temperatures and one pressure reading
- Advanced display incorporating a two-layer digital numerical accuracy with a breal-timeb analog feel
- Equipped with Warning and Peak Hold functions
- Each meter incorporates a centralized full-color LED indicator
- The LED color changes according to temperature or pressure readings
- Color change gradation
COMPONENTS
- Display Head Unit
- Sensor Unit
- Two x Temp. Sensors (1/8PT) with (2.5 meter) connector harness. Measures Water Temp. and Engine/Transmission/Differential gear oil temperature
- One x Press. Sensor (1/8PT) with (2.5 meter) connector harness. Measures Fuel and/or Oil Pressure
-> Optional Sensor Extension Harness - Part Number: 49B-A027 (3 meter)
-> Optional Sensor Adapters available.
| Part Number | 409AA003 |
|---|---|
| Electronics Model Compatibility | DIN3 Meter |
| Setting Parameters | Warning and Peak-Hold Functions |
| Special Notes | Includes 3 sensors (1/8PT): (Fuel/Oil Pressure Sensor x 1, Water Temperature Sensor x 1, and Oil Temperature Sensor x 1) |
 |
