Description

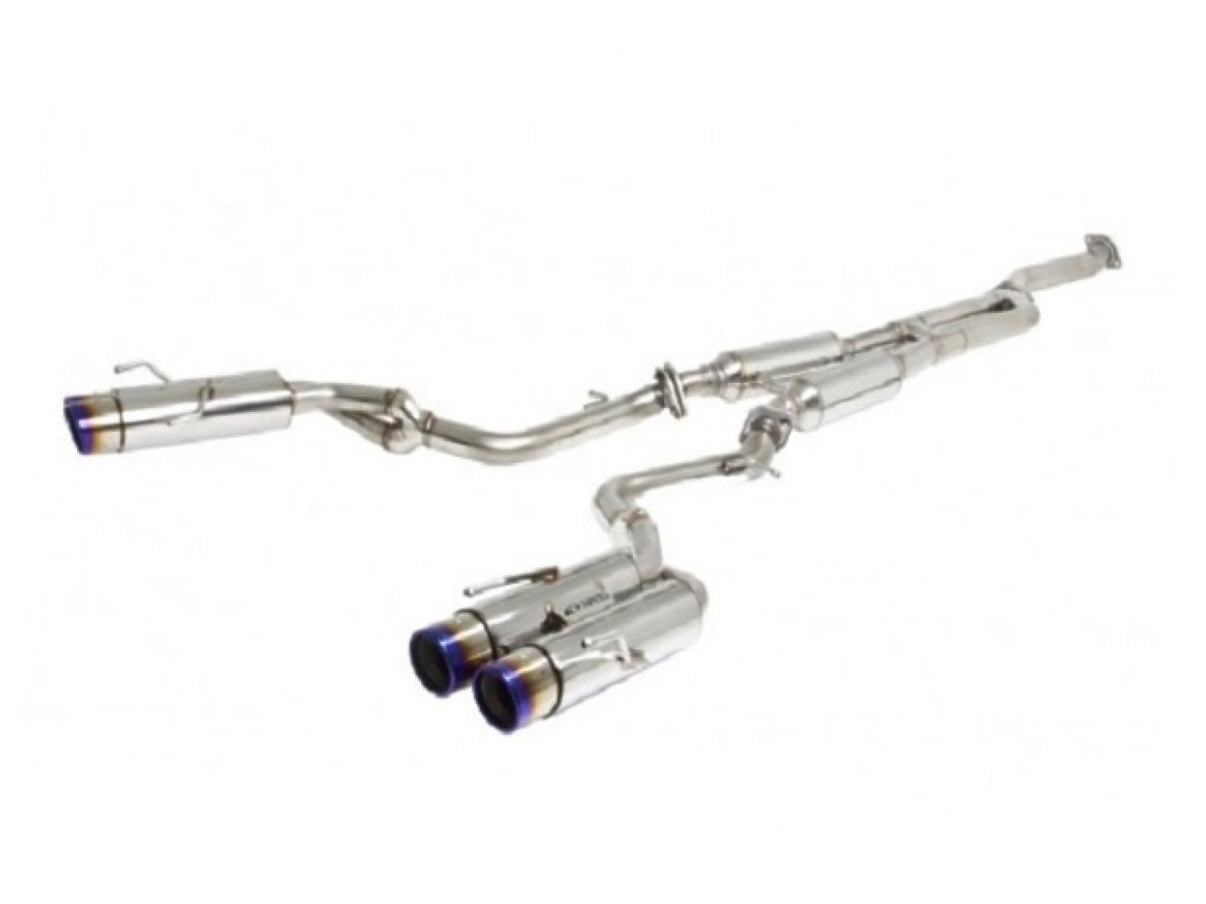

The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form. Constructed with a light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction, meanwhile retaining a sporty heat gradation appearance.
PRODUCT FEATURES:
PRODUCT FEATURES:
- High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
- Matched and manufactured for select chassis
- Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results
| Bolt-On | Yes |
|---|---|
| Part Number | 164KT205 |
| Year | 2015~present |
| Make | Lexus |
| Model | RC200t |
| Body Style | 2-Door Coupe |
| Engine | 8AR-FTS |
| Chassis | ASC10 |
| Exhaust Type | N1 Evolution Extreme Muffler (N1-X) |
| Piping Diameter | 65mm. x 2 - 50mm. x 4 |
| Tip Diameter | 93mm. x 4 |
| Pieces | 4 |
| Exhaust Tip Style | Titanium Round- Dual wall rolled, Angle cut (Riveted) |
| Piping Material | SUS304 Stainless Steel |
| Muffler Material | SUS304 Stainless Steel |
| Muffler Tip Material | Titanium |
| System Weight | 45.00 lbs. (Includes Full Exhaust System, gaskets and hardware pack) (Stock- 61.85 lbs.) |
| Sound Level | Sound Level: 91.7 dB @ 4,500 RPM. Modular design |
| Special Notes | Midpipe and Rear Section can be interchanged with factory exhaust components. NOTE: Do Not Use metal polish, cleaners, solvents, etc. containing abrasive chemicals/substances when cleaning titanium tip |
 |
WARNING: California Prop 65 Cancer & Reproductive Harm www.p65warnings.ca.gov |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2016 | Lexus | RC200t | F Sport, Base |
