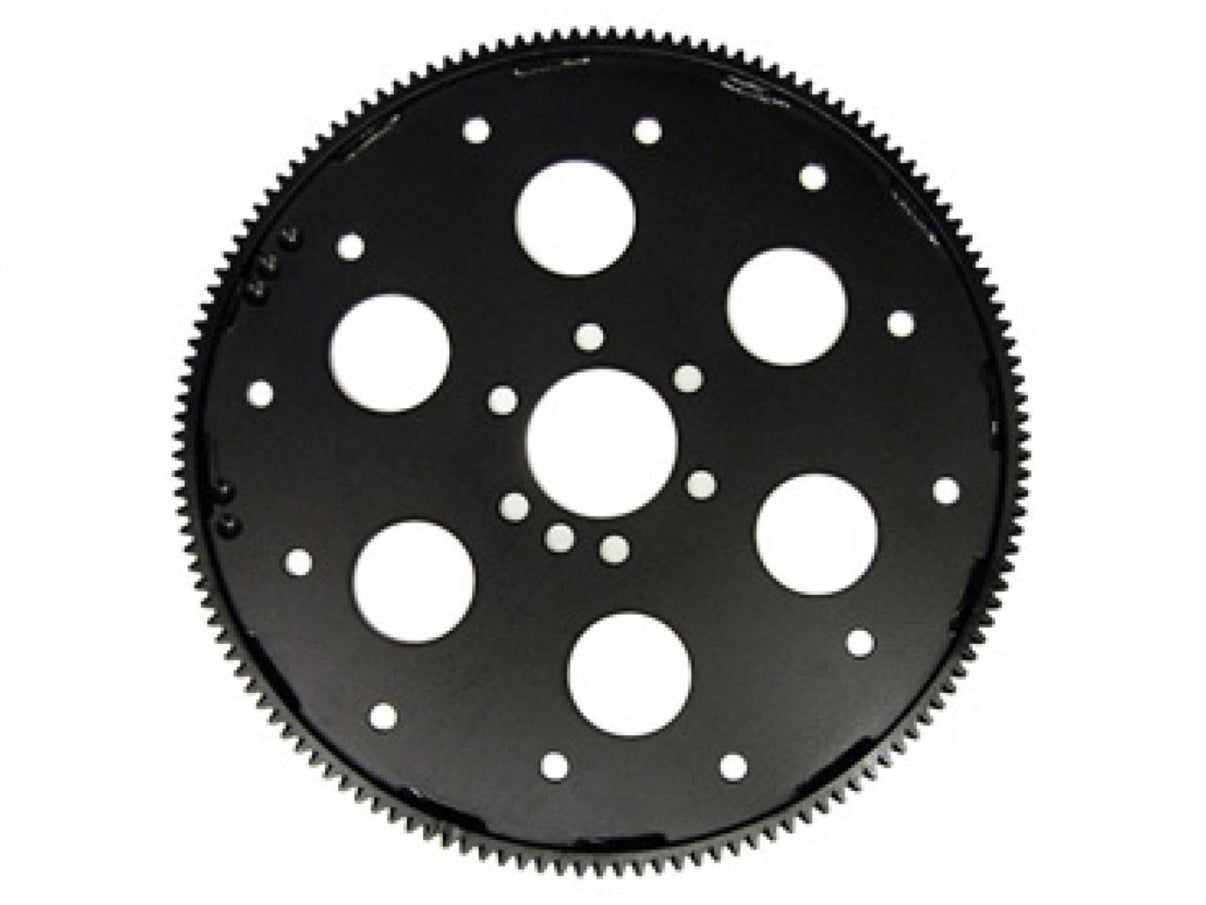

Ford Flexpate KitsManufactured in the USA on state-of-the-art CNC equipment, ATI's Flexplates are created from SFI-spec steel and are SFI 29.1 Certified and are double MIG/TIG welded for additional strength...
Manufactured in the USA on state-of-the-art CNC equipment, ATI's Flexplates are created from SFI-spec steel and are SFI 29.1 Certified and are double MIG/TIG welded for additional strength and lasting precision pass after pass. Each ATI flexplate is manufactured and toleranced from OEM drawings to ensure a precise fit and location. Each plate is quality inspected to exceed the flatness and run-out tolerances of the OEM units and is precision balanced on Hines digital equipment with a resolution of 1/10 oz-in.
Specifications:
Engine Balance: Internal
Flexplate Material: Steel
Ring Gear Tooth Quantity: 164-tooth
Bolt Circle: 11-7/16"
Trans: GM
Engine: 8-bolt 4.6-5.4L Mod Motor with GM Transmission
