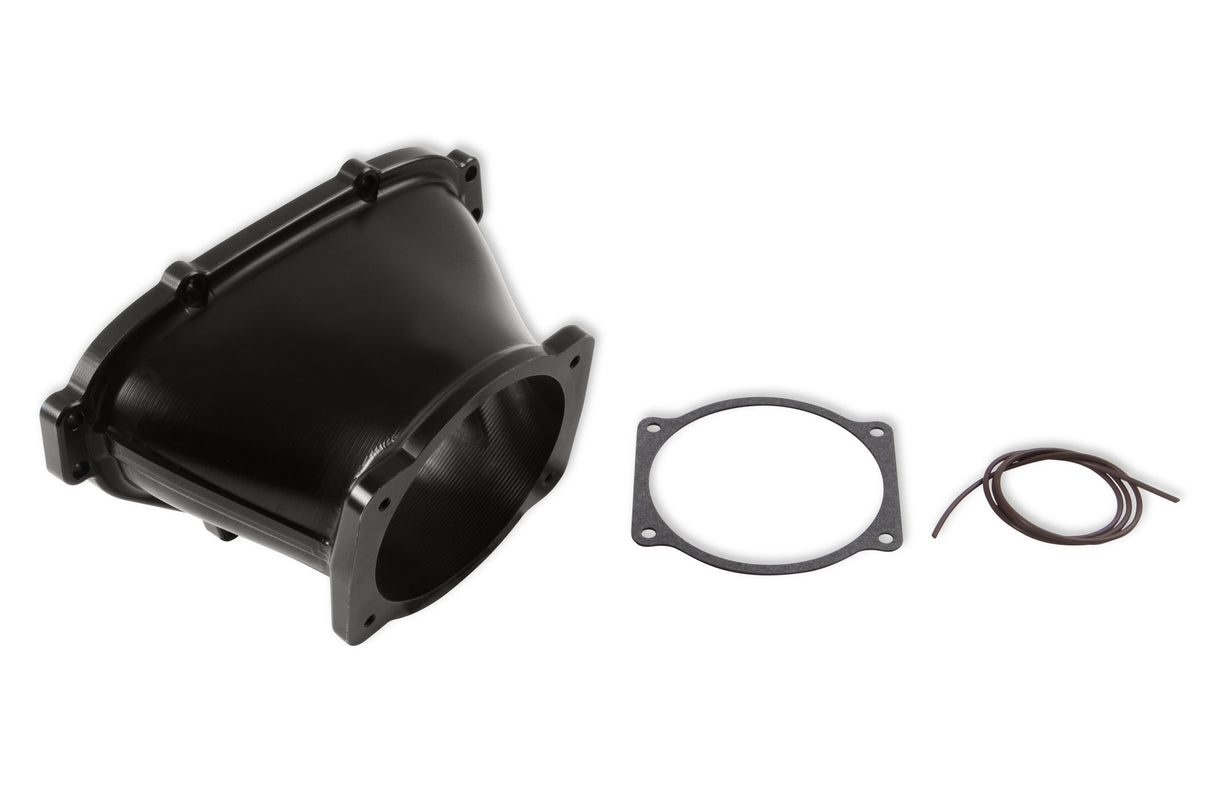

Billet Aluminum LS Front-Feed Lo-Ram 105 mm Throttle Body Adapter
Plenum Burst Plate Flange, Black Finish
Overview The Holley LS1/2/6 Ultra Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifold and rail kits will work with OE (Original Equipment) or aftermarket cylinder heads.
The 300-625 (satin) 300-625BK (black), intake manifold kits provide two injectors per cylinder for hi-volume fuel demands, flexible fuel supply strategies, and dual-fuel capability. Also featured on this kit is a standard 6-1/8" x 3-1/8" burst panel flange. SFI approved burst panels, burst panel frame sets, and gaskets may be purchased from various manufacturers such as Allstar Performance or Specialty Fasteners. The short runner, low-profile base intake manifold was conceived to package with high-boost turbocharged or supercharged induction systems with a short overall height not possible with other existing intake manifolds. This Holley Lo-Ram kit is configured for a 105mm throttle body, see Holley P/N 112-581 or similar models. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.
Holley Lo-Ram intake manifold kits include all the sealing o-rings, plugs, and fasteners required for the installation of the kit.
Features:
Machined billet construction
Clear/black anodized for long-term protection from elements and fuels
Works with all front feed Lo-Ram bases (300-602, 300-602BK, 300-603, 300-603BK)
Modular Lo-Ram design allows user customization for your induction system
Flange seal o-ring cord and the mounting fasteners are included in the kit
