Description

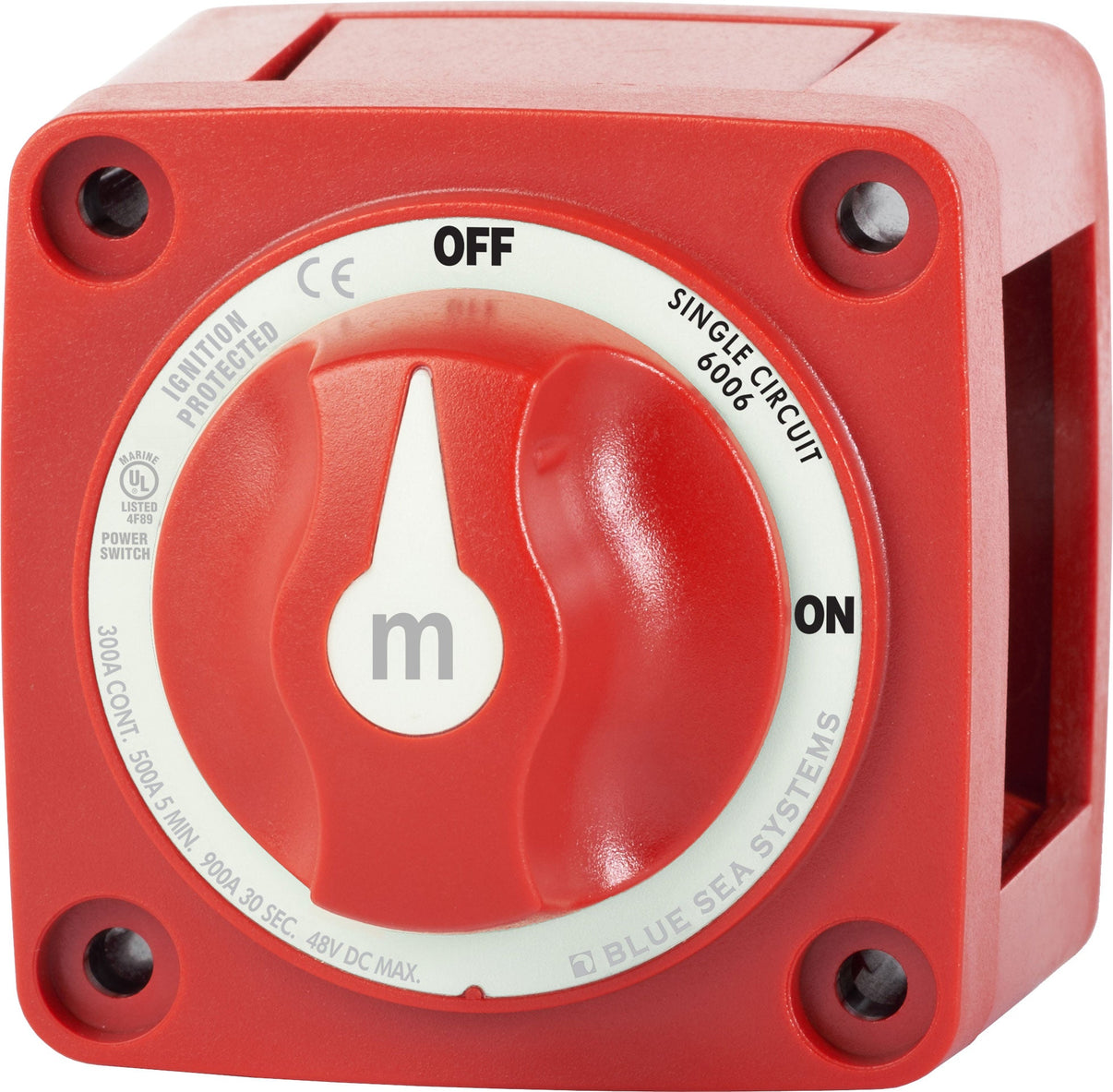

300 Ampere continuous rating for outboards and small gasoline or diesel engines. One-piece tin-plated copper stud design never loosens over time. Terminal studs accept 3/8" or M10 ring terminals. Features isolation cover with 3 removable sides. This Mini switch is 2-7/8" x 2-7/8". Ignition protected and UL Listed. Rated for 300 amps continuous, 500 intermittent, 1500 cranking.
Switches a single battery to a single load group
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface, front panel, or rear panel mounting
- Isolating cover with snap-on sections protects rear contacts
Switch Type
Single Circuit ON-OFF
Color Red
Switch Positions 2
Battery Combine No
Alternator Field Disconnect
No
Maximum Voltage 48V DC
Stud Size 3/8"
Terminal Stud Torque 120 in-lb (13.56 Nm)
Continuous Rating
300A
Intermittent Rating
500A (5 min)
Starting Rating 30 sec
900A
Battery Inputs 1
Cable Clearance For 4/0 AWG Cables 1.12in (28.45 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept #10 Screw
Stud Material Tinned Copper
Stud Torque 120 in-lb (13.56 Nm)
Switching Rating 25A
Terminal Stud Size 3/8" - 16 (M10)
