Bushed DOM Sleeve Fully assembled sleeves ready for motor mounts, crossmembers, and custom fab work. This is the bushed sleeve you've been waiting for—fully assembled and ready to go. Each...
Fully assembled sleeves ready for motor mounts, crossmembers, and custom fab work.

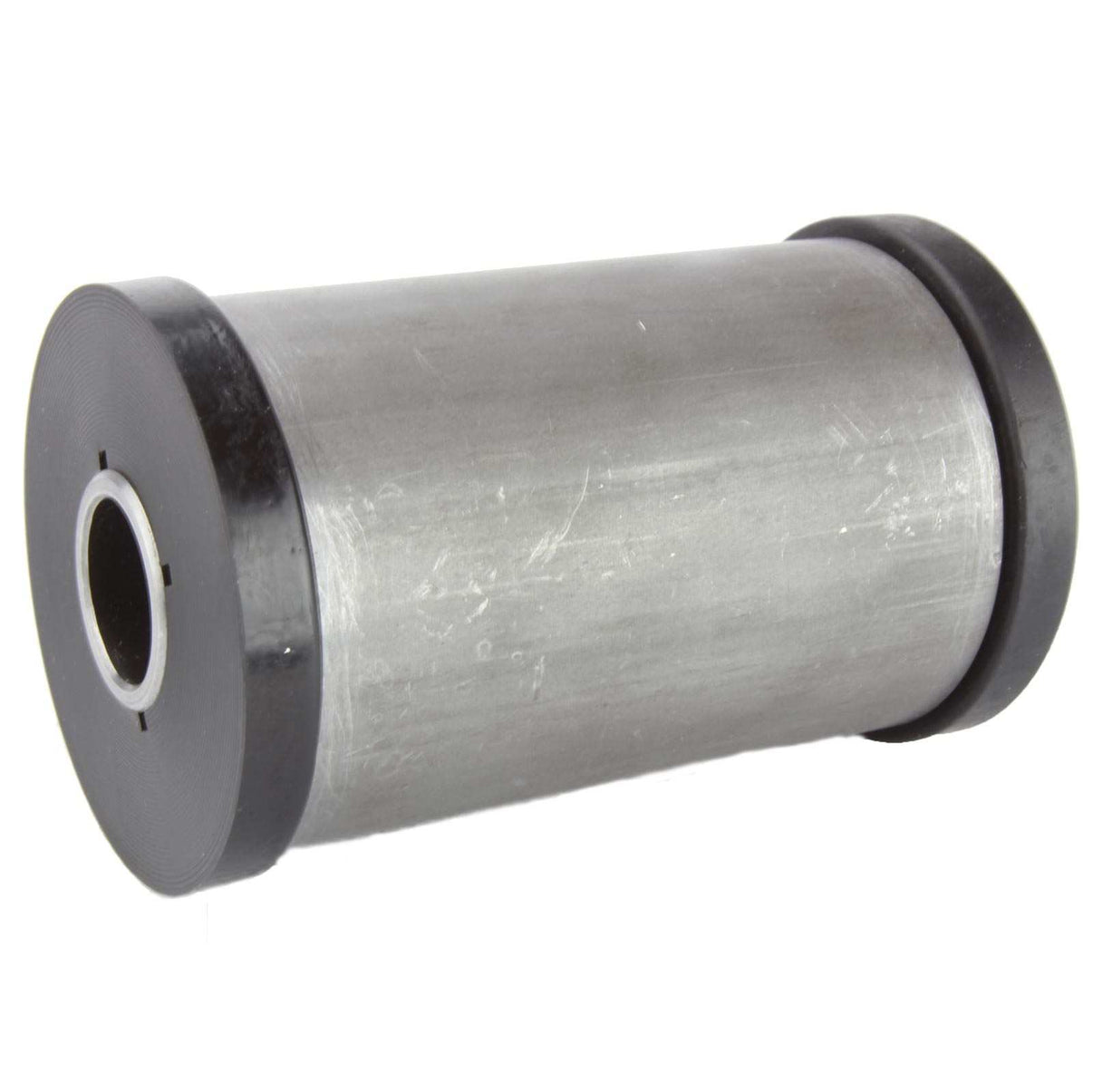

This is the bushed sleeve you've been waiting for—fully assembled and ready to go. Each unit includes a DOM outer sleeve, two high-quality polyurethane bushings, and a DOM inner sleeve sized for your chosen bolt diameter. These are commonly used in motor mounts, traction bar ends, crossmembers, or any custom fab job where controlled flex and long-term durability matter.
Choose from two DOM sizes depending on your application: 1.75" O.D. x .120" wall for lighter-duty setups or 2" O.D. x .250" wall for heavy-duty builds. Available to fit standard 2.625" wide link brackets and other common sizes with custom widths available from 2" to 4".
Key Features
Part Number: R1087
Fitment: Universal application for motor mounts and crossmembers
Material: DOM tubing with polyurethane bushings
Available widths: 2.625", 2.75", 3", 3.1875", 3.4375"
DOM options: 1.75" x .120" wall or 2" x .250" wall
What's Included
1x DOM outer sleeve (1.75" x .120" or 2" x .250")
1x Inner DOM sleeve for 1/2" or 9/16" bolt
2x High-quality polyurethane bushings
Notes
Use silicone or lithium-based grease on polyurethane bushings - petroleum-based lubricants will degrade the bushing and void warranty
