Camshaft / Crankshaft Sensor Flying Magnet Sensor

Camshaft / Crankshaft Sensor Flying Magnet Sensor

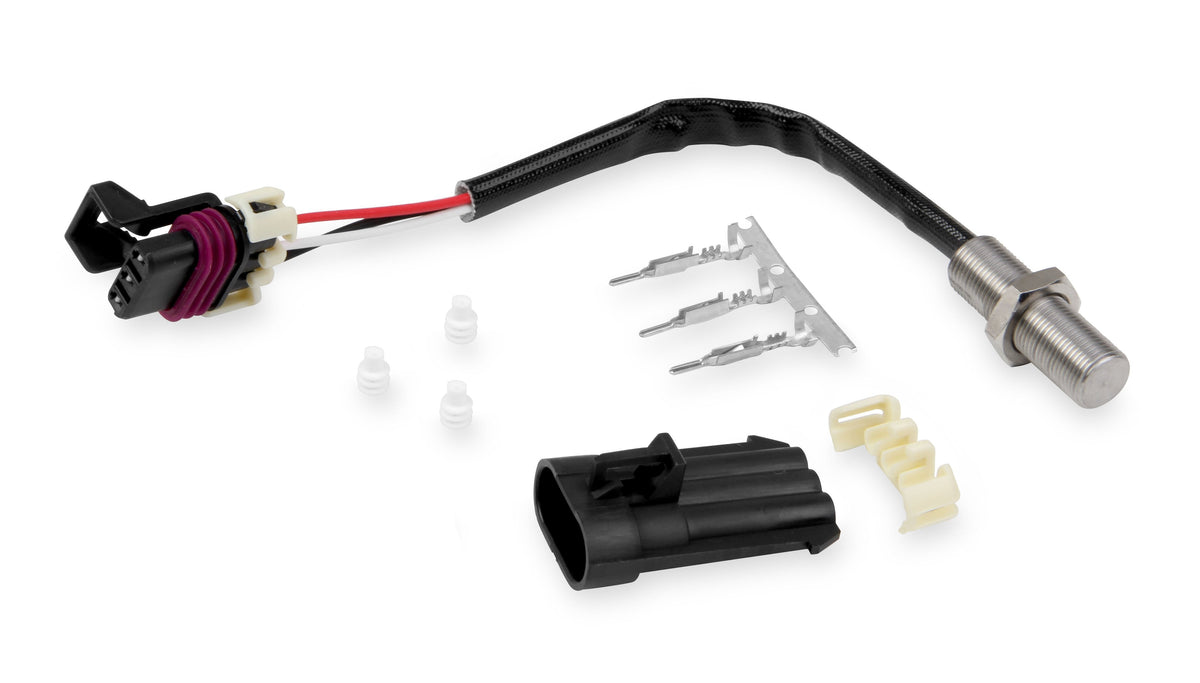

Crank Sensor; Hall Effect; M12x1; For use with Ferrous Target

Overview
Every racer around is well aware that the crank sensor is an integral part of the fuel injection system. Holley's EFI Crankshaft Signal Sensor is designed to generate an RPM input signal to the ECU when used in ferrous target crank trigger setups. This sensor is a Hall Effect sensor, meaning it outputs a digital square wave signal, which is ideal for use with most Electronic Fuel Injection Systems.

This sensor is to be used with trigger wheels with ferrous steel targets or teeth. it does not detect "flying magnets".

Features:

• 3 wire hall-effect camshaft sensor, generates digital square-wave signal
• For use with flying magnet targets only ???? South pole of magnet facing sensor
• Can operate from 8-20 volts; mating connector included
• M12x1 threads for finer gap adjustability; Approx. 1.5??? length

Details:

• Sensor Type: Hall Effect
