Carburetor Toolkit 2.0

Everything you need to tune your Holley Style carburetor in one compact box!

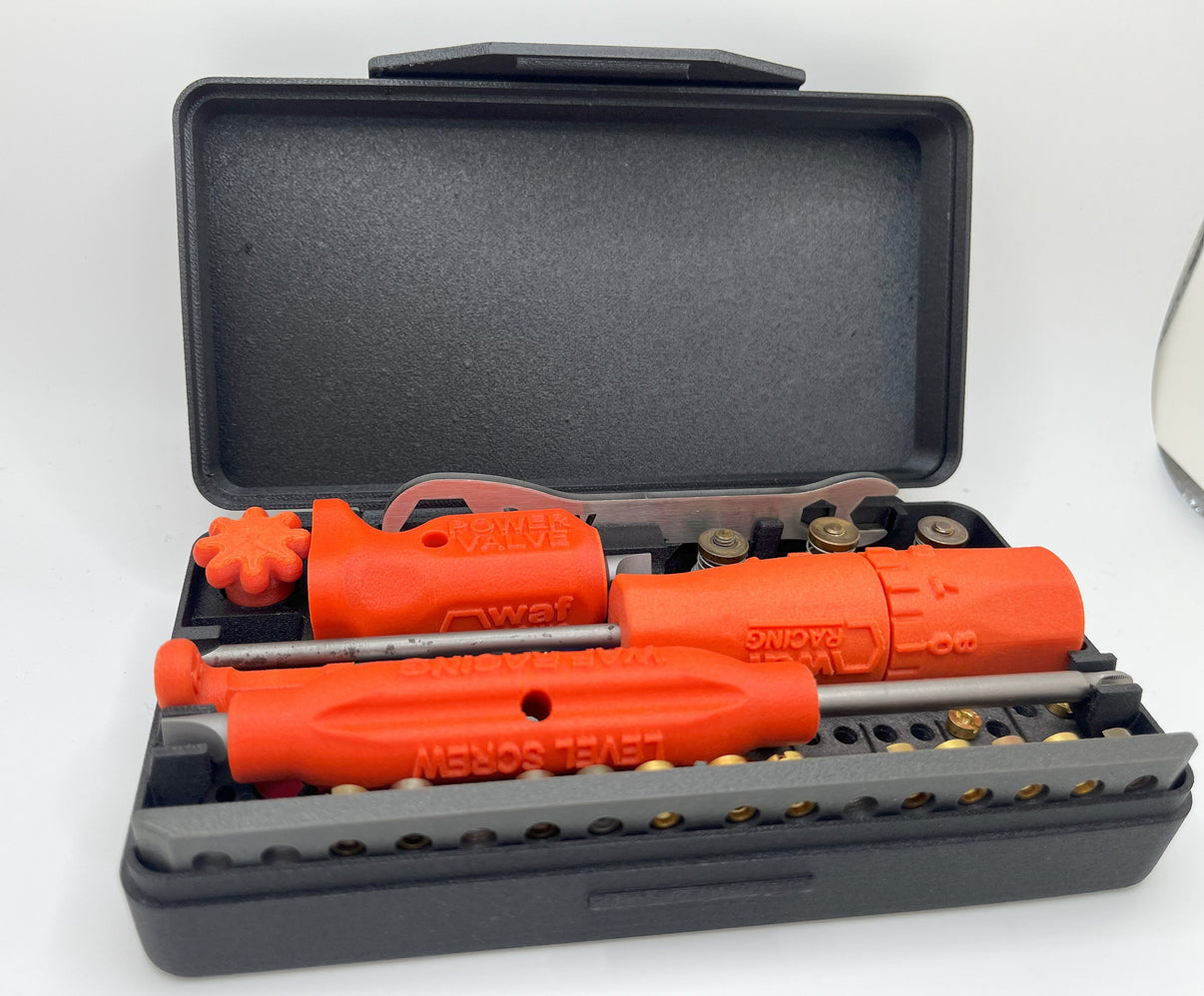

5 tools and a bunch of storage in a compact case (7" x 3-1/2" footprint, 1-3/4" tall)

The Tools:

• Combo Wrench
  • 3/8" end for squirter lever arm adjustment
  • 5/8" end for float level adjustment
  • 5/16" hex for jet extensions
• 3/8" Thumbscrew Tool
  • Squirter lever arm nut adjustment (used with 3/8" end of combo wrench)
• Power Valve Wrench / Screwdriver
  • Square end fits power valves
  • Flathead bit fits jets and screw for float level adjustment
• Fuel Bowl Bolts Driver
  • Special nut driver turned down to clear fuel bowl body and install / remove your bowl bolts
• Combo Screwdriver
  • Phillips head / 5/32 hex option head end for Squirters
  • Flat head for air bleeds and brass fuel level screws
• Idle Adjust / Air Bleeds Screwdriver
  •  Pro Version Idle adjust screwdriver
  • Screwdriver tip also fits air bleeds

What else does it store?

• 32 Main Jets (not included)
• 24 Air Bleeds (not included)
• 6 Accelerator Pump Discharge Nozzles ... "Squirters" (not included)
• 6 Accelerator Pump Cams (not included)
• 3 Power Valve (not included)
• 2 Squirter Gaskets, Part No.1008-844 (included if selected as an option)
• 2 Needle & Seat Top Gaskets, Part No. 1008-777 (included if selected as an option)
• 2 Needle & Seat Bottom Gaskets, Part No. 1008-776 (included if selected as an option)
• 1 Power Valve Gasket, Part No. 1008-1597 (included if selected as an option)
• 2 Metering Block Gaskets, Part No. 1008-1907-1 (included if selected as an option)
• 2 Fuel Bowl Gaskets, Part No. 1008-1911-1 (included if selected as an option)

PLEASE NOTE THAT THE JET / AIR BLEED STORAGE BLOCK IS INTENDED FOR YOU TO SCREW YOU JETS INTO IT. THE FIRST TIME YOU DO THIS THEY WILL CUT THEIR OWN THREADS.

See how to use the tools here: https://www.instagram.com/p/C9AfbslRrpM/
