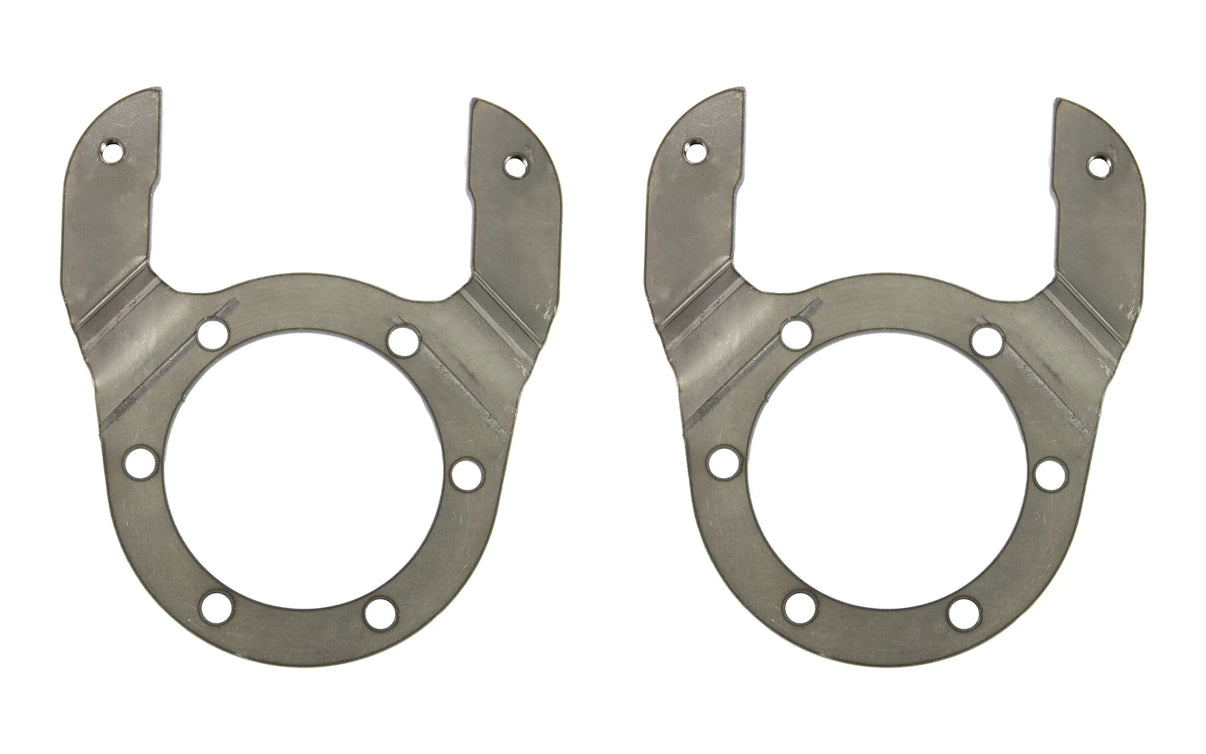

Chevy Front Dana 60 Disc Brake Bracket Pair

Chevy Front Dana 60 Disc Brake Brackets

Direct Bolt-On Disc Brake Upgrade for Dana 60 Kingpin Axles

These disc brake brackets are built for Dana 60 kingpin front axles found in 1977–1991 Chevy/GMC 1-ton trucks and 1990–1993 Dodge trucks with internal locking hubs. They require no extra hardware and are designed to work with readily available '73–'87 Chevy 3/4-ton 4x4 calipers and rotors (not included). The setup delivers a lighter rotating mass and a firm, confident brake pedal feel while keeping parts easy to source.

The rotor mounts to the back side of the wheel hub, just like the factory design. Be sure to double-check stud diameter before installation—studs should drop freely into the rotor without pressing. If your hub studs are too large, rotors can be drilled to size (typically 11/16") for a proper fit. Minimum thread engagement for lug nuts should be at least 5/8".

Key Features

• Part Number: R1986
• Fits 1977–1991 Chevy/GMC 1-ton Dana 60 kingpin front axles (internal locking hubs)
• Fits 1990–1993 Dodge Dana 60 kingpin front axles (internal locking hubs)
• Uses '73–'87 Chevy 3/4-ton 4x4 calipers & rotors (not included)
• Rotor mounts on back side of wheel hub
• Direct bolt-on—no extra hardware required
• Sold in pairs

Kit Includes

• (2) Chevy front Dana 60 disc brake brackets

Note: Double-check hub stud size before installation. Studs must drop freely into rotor holes—do not press in. If needed, drill rotors to fit (typically 11/16"). Maintain at least 5/8" lug nut thread engagement.
