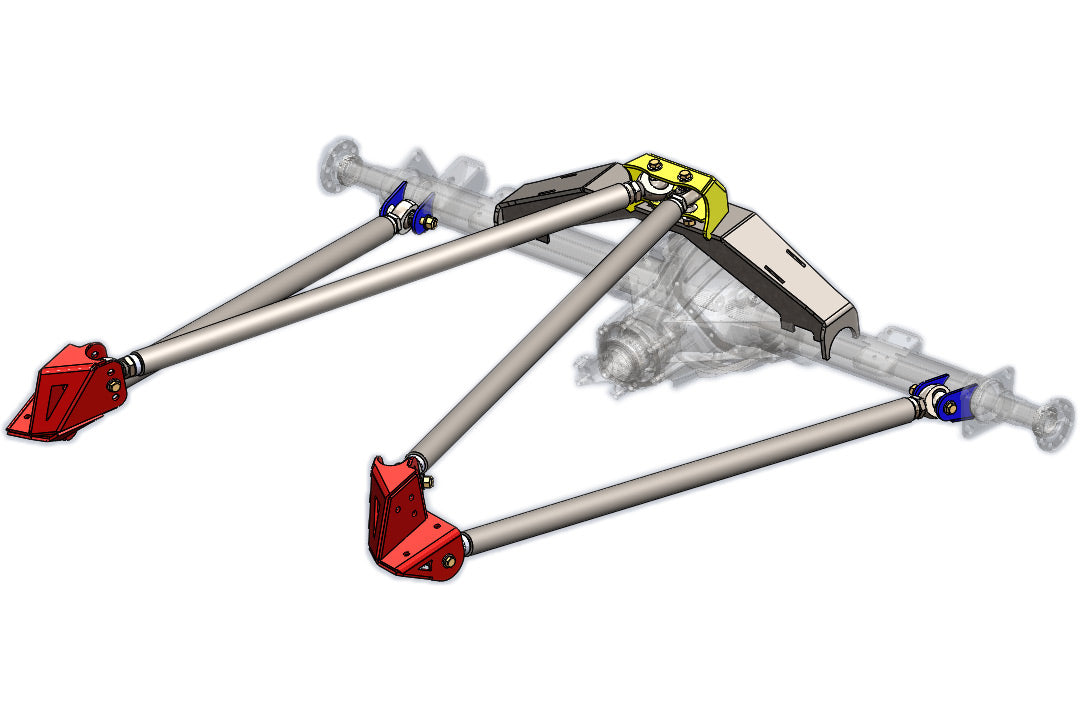

Combo 4 Link Kit, Uppers/Lowers Triangulated Complete triangulated 4-link suspension kit for custom builds. This combo kit includes both upper and lower 4-link bars in a triangulated configuration, giving you...
Complete triangulated 4-link suspension kit for custom builds.
This combo kit includes both upper and lower 4-link bars in a triangulated configuration, giving you everything you need to build a solid rear suspension setup. Triangulated 4-links provide excellent lateral stability without the need for a track bar, making them ideal for rock crawlers and off-road rigs where articulation and strength matter. The design allows the axle to move vertically while keeping it centered under the vehicle.
The kit includes laser-cut tabs, weld-on brackets, and all the hardware you need to mount the links. Each link is designed to be welded together, giving you a custom-fit suspension that's built to handle serious abuse. The triangulated layout works with most axle widths and can be adapted to fit a variety of wheelbases.
Key Features
Part Number: R2497
Universal fitment for custom 4-link suspension builds
Triangulated design eliminates need for track bar
Weld-on construction for maximum strength and custom fitment
Includes complete hardware kit with heim joints, misalignment spacers, jam nuts, and mounting bolts
What's Included
8 heim joints (4LH-4RH)
16 misalignment spacers
8 jam nuts
Mounting bolts and hardware
Weld-on axle and frame brackets
Notes
Welding required for installation
Custom fitting and trimming may be necessary depending on your specific application
