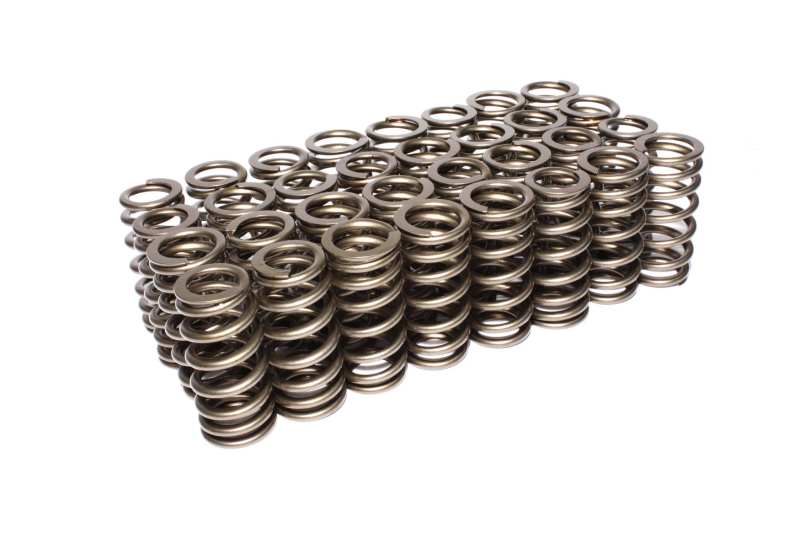

Valve Spring Set 32 Valve Dohc 4.6/5.4 Modular Ford (Requires 799-32)Top .943" O.D., .580" I.D.; Bottom 1.105" O.D., .742" I.D. With a .500" maximum lift, these BeehiveT Valve Springs were...
Valve Spring Set 32 Valve Dohc 4.6/5.4 Modular Ford (Requires 799-32)Top .943" O.D., .580" I.D.; Bottom 1.105" O.D., .742" I.D.
With a .500" maximum lift, these BeehiveT Valve Springs were designed for Ford 4.6L Modular 4 Valve engines.
COMP Cams® BeehiveT Valve Springs deliver increased valve train stability and a much lighter valve train.
This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer.
The unique BeehiveT shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability.
The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life.Because of the unique BeehiveT design, the valve train can handle more RPM and more aggressive cam profiles.
