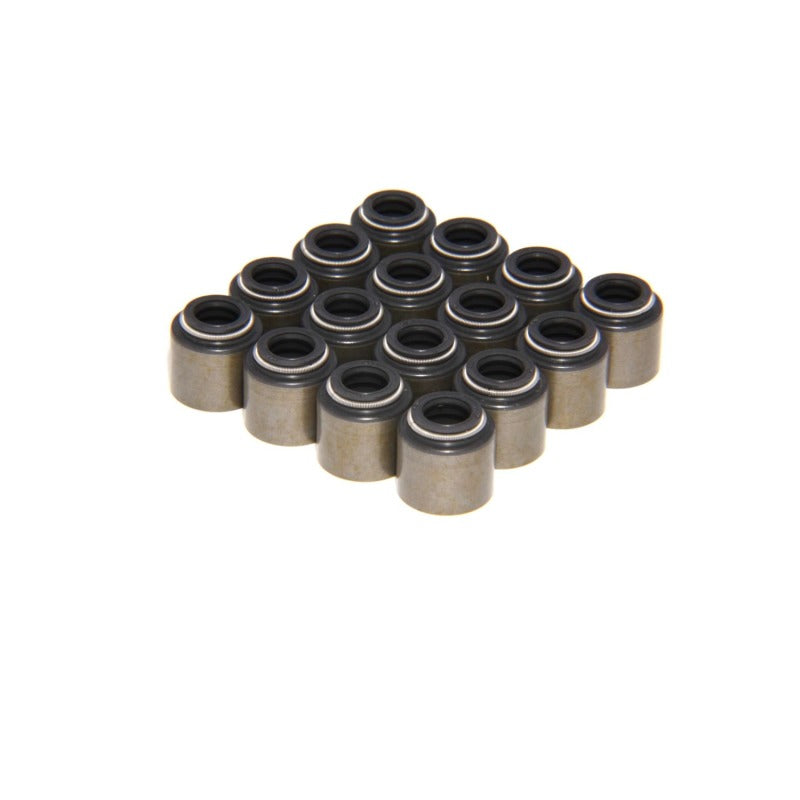

(16) Steel Jacketed Viton Valve SealsCOMP Cams® offers a complete line of valve stem seals, from the stock GM "O-Ring" to the positive-stop PTFE seal. These seals are a must...
COMP Cams® offers a complete line of valve stem seals, from the stock GM "O-Ring" to the positive-stop PTFE seal. These seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The "O-Ring" seals use the standard retainer and oil splash shield. The umbrella seal is normally used when a larger-than-stock diameter spring is used, in the case of a double spring, the positive-stop PTFE seal is used. We also have a smaller diameter Viton seal available for triple spring applications. Both the O-Ring and the umbrella seals require no machining, but with the PTFE seal it is necessary to disassemble the heads and machine the top of the guide with a special .500" diameter cutter. Whenever you are planning an engine overhaul or a cam change, don't forget the valve seals--COMP Cams® hasn't!
Vehicle Fitments:
Year
Make
Model
Submodel
2004 - 2007
Cadillac
CTS
Base, V
1998
Chevrolet
Camaro
Lujo
1998 - 2002
Chevrolet
Camaro
Z28, Z28 SS, Base
2003
Chevrolet
Corvette
50th Anniversary Edition Pace Car, 50th Anniversary Edition
