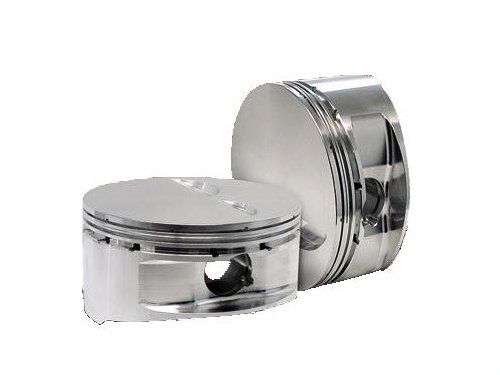

Small Block Chevy LS1 Piston SBC LS1 Flat Top & Dish Designed on X-style forging to clear reluctor wheel Fit LS1, LS2 and LS6 heads Designed for shorter wrist pins...
Designed on X-style forging to clear reluctor wheel
Fit LS1, LS2 and LS6 heads
Designed for shorter wrist pins
Pinfitting included at no cost
Chamfered pins and wire locks included
Accumulator and anti-detonation grooves included
Designed for back-cut rings
Double pin oilers, force fed from oil ring
Pick lock grooves for easy lock removal
Custom skirt cam and barrel shapes
Supplied with Wire Locks and 927×2.250 Pin (106g)
CP Pistons are priced and sold per piston. 8 Cylinder engines will require Quantity 8 of each part #.
Individual CP Piston Domed Fits 18Degree Dart Big Chief & Brodix Big Duke Heads Supplied With Double Spiral Locks Supplied with .180 Wall .990 x 2.750 pin (142g)
or optional 165g
2nd Ring: 0.043
Bore: 4.600
Comp Height: 1.120
Dome VR CC: .245 Dome +19cc
Gas Ports: Yes
Oil Ring: 3.0
Rod: 6.535
Stroke: 4.250
Top Ring: 0.043
Weight: 577w/ 18Degree Dart Big Chief or BRODIX Big Duke Heads
