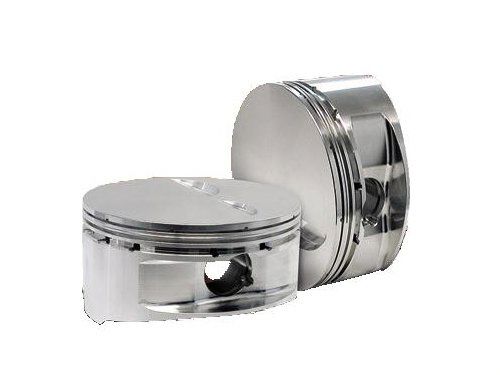

Small Block Chevy LS1 Piston Kit SBC LS1 Flat Top & Dish Designed on X-style forging to clear reluctor wheel Fit LS1, LS2 and LS6 heads Designed for shorter wrist...
Designed on X-style forging to clear reluctor wheel
Fit LS1, LS2 and LS6 heads
Designed for shorter wrist pins
Pinfitting included at no cost
Chamfered pins and wire locks included
Accumulator and anti-detonation grooves included
Designed for back-cut rings
Double pin oilers, force fed from oil ring
Pick lock grooves for easy lock removal
Custom skirt cam and barrel shapes
Supplied with Wire Locks and 927×2.250 Pin (106g)
CP Piston Kit 18Degree Dome w/ 1/16 x 1/16 x 3/16 Ring Grooves Supplied With Double Spiral Locks Rail Supports included Supplied with .927 x 2.950 Pin (137g) .073 Spiral Locks required with 2.950 Pins
