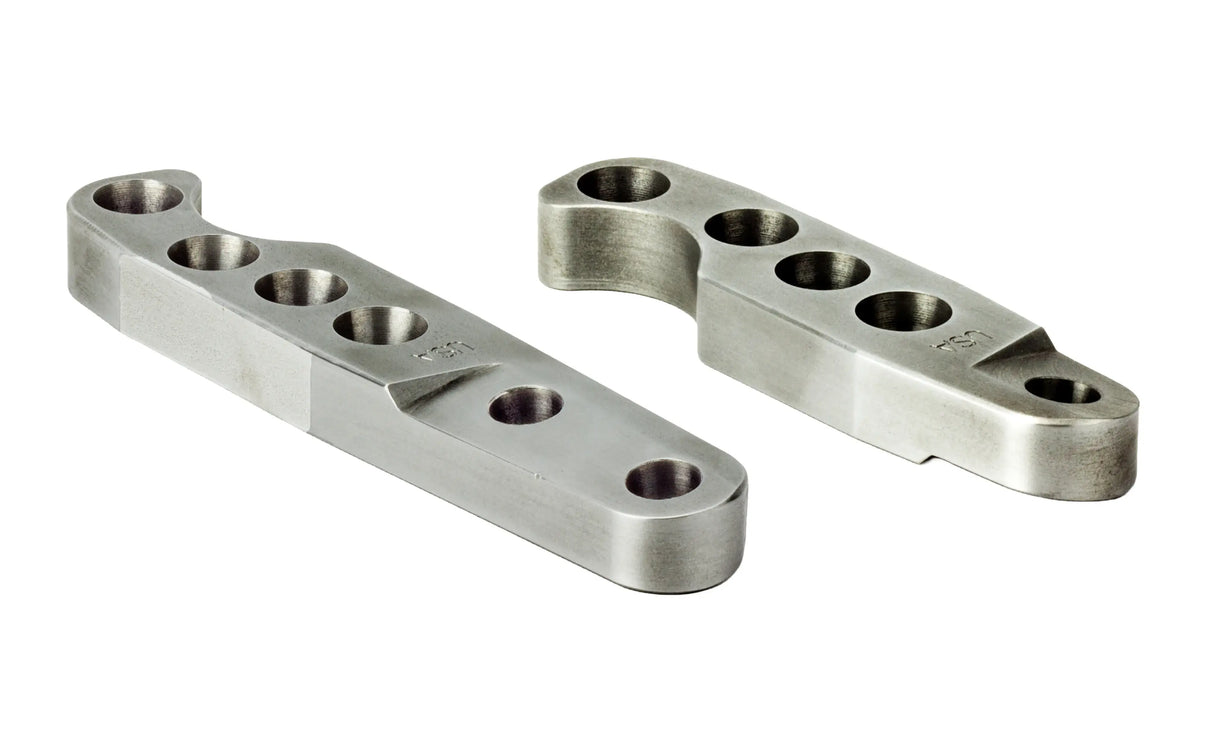

These Dana 44 flat high steer arms retain the factory 9° angle to maintain proper joint travel through full droop. Without this machined angle, your TRE or heim setup would bind before max travel. Machined from 1018 bar stock and tumbled to remove sharp edges, these arms are ready for crossover or Y-link style steering setups.
Both the tie rod and drag link holes come tapered—one for standard GM 1-ton TREs and one for high-angle GM 1-ton TREs. Fits both 3-stud and 4-stud knuckles. Steering stud kits sold separately.
Key Features
Part Number: R1798
Maintains factory 9° angle for full droop steering clearance
Accepts standard and high-angle GM 1-ton tie rod ends
Works with both 3-stud and 4-stud Dana 44 knuckles
Machined from 1018 bar stock
Tumbled finish to remove sharp edges
Sold in pairs
Steering stud kits sold separately
Off-road use only
Kit Includes
(2) Dana 44 flat high steer arms
Note: Welding required. Make sure installation is done with proper tools and technique.
