Dana 44 Rear Axle Simple Swap Kit Basic Leaf Spring Mount Kit for Dana 44 Rear Axles with 2.5" Springs This kit is designed for Dana 44 rear axles using...
Basic Leaf Spring Mount Kit for Dana 44 Rear Axles with 2.5" Springs
This kit is designed for Dana 44 rear axles using 2.5" wide leaf springs. It fits axles with 2.75" diameter tubes—common on most 5- and 6-lug Dana 44s. The kit includes all the essentials for a basic swap: spring plates, perches, shock brackets, and U-bolts with hardware.
Key Features
Part Number: R1137
Fits Dana 44 rear axles with 2.75" diameter tubes
For use with 2.5" wide leaf springs
Includes heavy-duty 5/8" U-bolts and mounting hardware
Shock brackets sized for 1.5" ID bushings

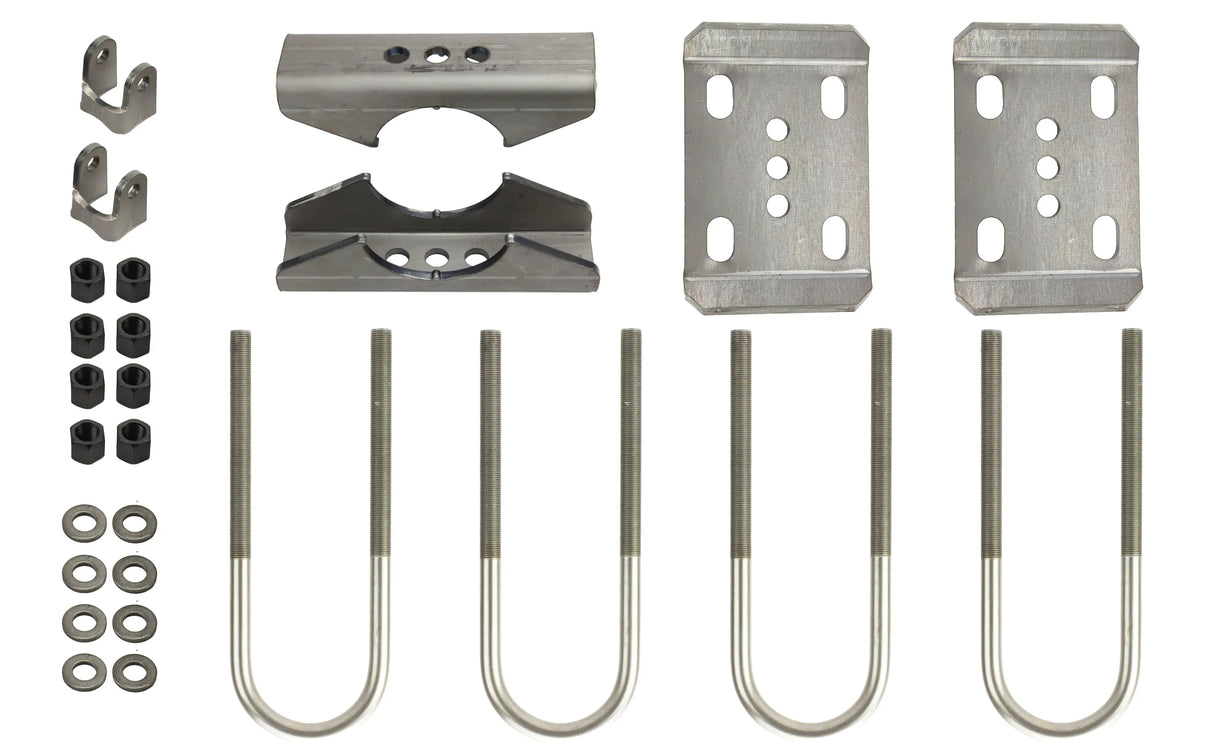

Kit Includes
(2) Leaf spring plates for 2.5" springs
(2) Spring perches – 2.5" wide
(2) Shock brackets – 1.5" ID
(4) U-bolts – 10" x 5/8" x 2.75"
Mounting hardware with washers and nuts
Available Kit Options
U-Bolt Length
10" Long
13" Long
Note: Welding required. Make sure installation is done with proper tools and technique.
