Dana 44HD Spring Perches, 2.5" Wide Weld-On Leaf Spring Perches for 3.0" Axle Tubes – Spring Over These spring perches are designed for spring-over applications using Dana 44HD axles with...

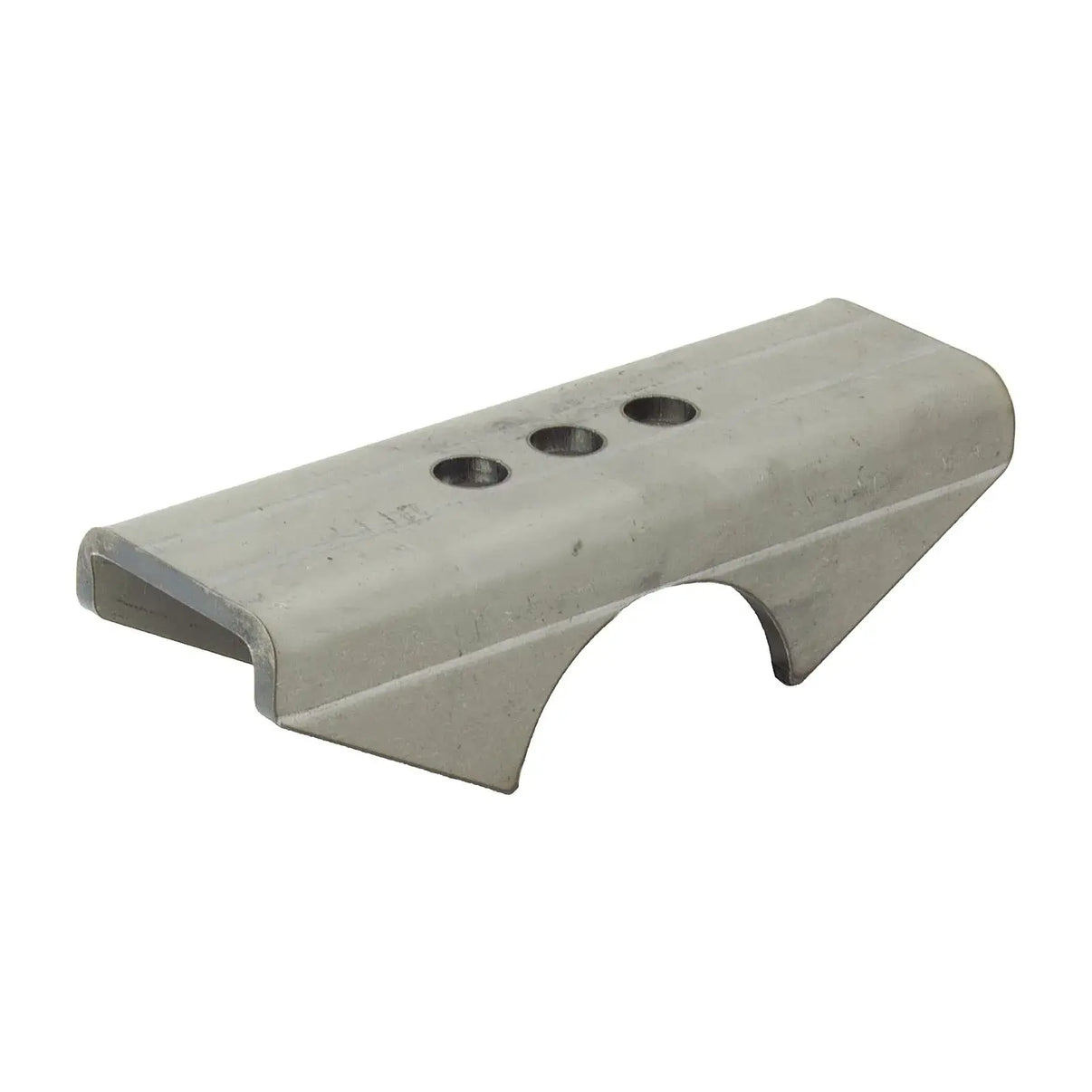

Weld-On Leaf Spring Perches for 3.0" Axle Tubes – Spring Over
These spring perches are designed for spring-over applications using Dana 44HD axles with 3.0" diameter tubes. Made from 1/4" HR P&O steel, they’re CNC laser cut and brake-formed for precision. At 8" long, they help reduce axle wrap, and the 2.5" width provides a stable base for leaf springs. The triple spring pin options allow for wheelbase adjustment during installation. Easily modified with a grinder to fit slightly larger or smaller axle tubes.
Key Features
Part Number: R1110
Fits 3.0" axle tubes (Dana 44HD)
2.5" wide spring mounting surface
8.0" long for added anti-wrap support
Made from 1/4" HR P&O steel
Three spring pin mounting positions for wheelbase adjustment
Sold in pairs
Kit Includes
(2) Spring perches – 2.5" wide, cut for 3.0" axle tubes
Note: Welding required. Make sure installation is done with proper tools and technique.
