Dana 70 Chevy Dually Axle Using Single Rear Wheel Disc Brake Kit
Disc Brake Conversion for Chevy Dana 70 Dually Axle with Single Rear Wheels
This disc brake conversion kit is built for Chevy Dana 70 dually rear axles that have been converted to single rear wheel setups. It's a solid option for off-road rigs where weight savings and easier brake maintenance are priorities.
The kit replaces the factory drum brakes with a rotor and caliper setup that sheds over 100 lbs. It mounts the rotor behind the hub and uses standard, non-parking brake calipers. Not intended for towing or use with dually wheels.
Key Features
Part Number: R2050
For Chevy Dana 70 Dually axles using single rear wheels
Minimum 15" steel wheels with max 4" backspacing required
Rotor mounts on the backside of the hub
Calipers are standard non-parking brake type
Not compatible with dually wheels or parking brake calipers

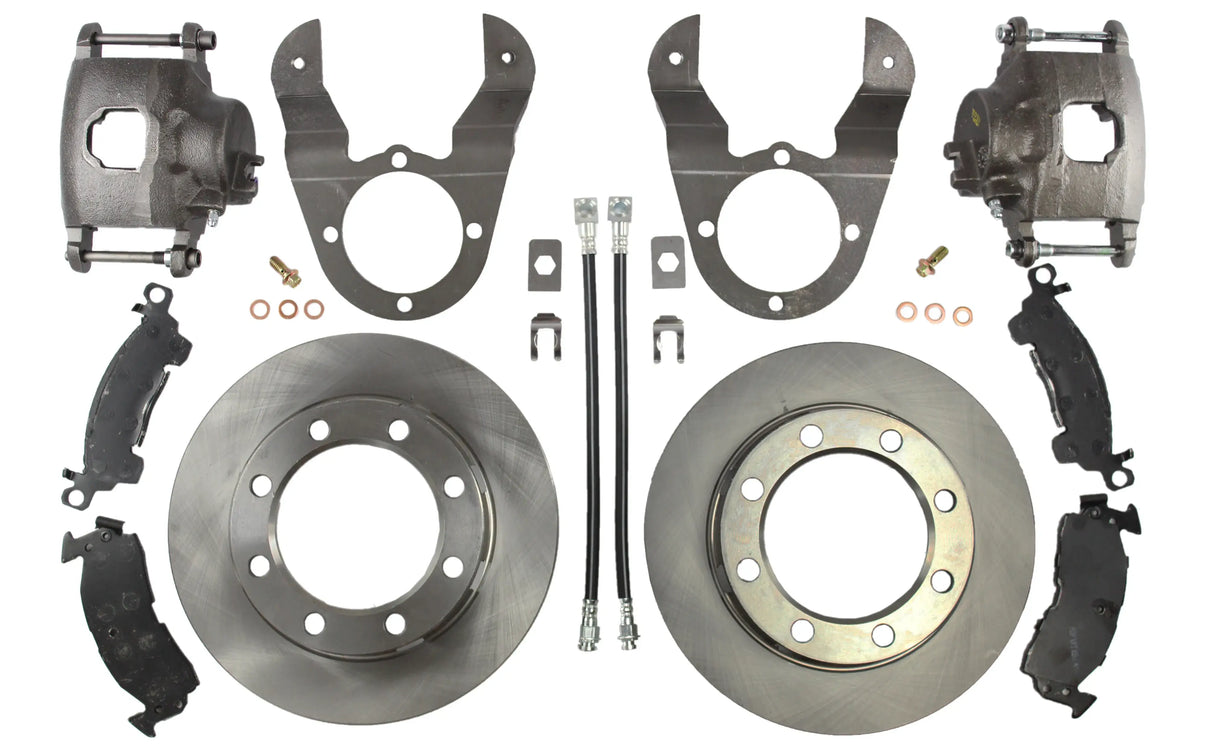

What's Included
(2) Chevy Dana 70 Dually Disc Brake Brackets
(2) Weld-on Brake Line Tabs
(2) Brake Line Clips
(2) Brake Calipers
(2) Hydraulic Hoses with Banjo Bolt Fittings (10mm standard or 7/16" for El Dorado)
(4) New Brake Pads
(2) New Rotors
Important Notes
Check that rotor fits over your hub studs—do not press studs through rotor
Minimum 5/8" lug nut thread engagement required after wheel install
