Dana 70 Ford Axle Disc Brake Conversion Kit Ford Dana 70 & 70U SRW Disc Brake Swap This disc brake kit is built for converting Ford Dana 70 and Dana...
This disc brake kit is built for converting Ford Dana 70 and Dana 70U single rear wheel (SRW) axles from drums to discs. It's designed specifically for these axles, so there's no need for grinding or guesswork during installation.
The kit includes everything needed—brackets, calipers, rotors, pads, hoses, and hardware. It's a solid upgrade if you're looking for better braking performance, easier serviceability, and a lighter setup compared to factory drums.
Key Features
Part Number: R2052
Fits Ford Dana 70 and Dana 70U SRW rear axles
Includes all hardware, calipers, rotors, pads, lines, and brackets
Not for dual rear wheel (DRW) or van axles
Works with 15”+ steel wheels with max 4" backspacing

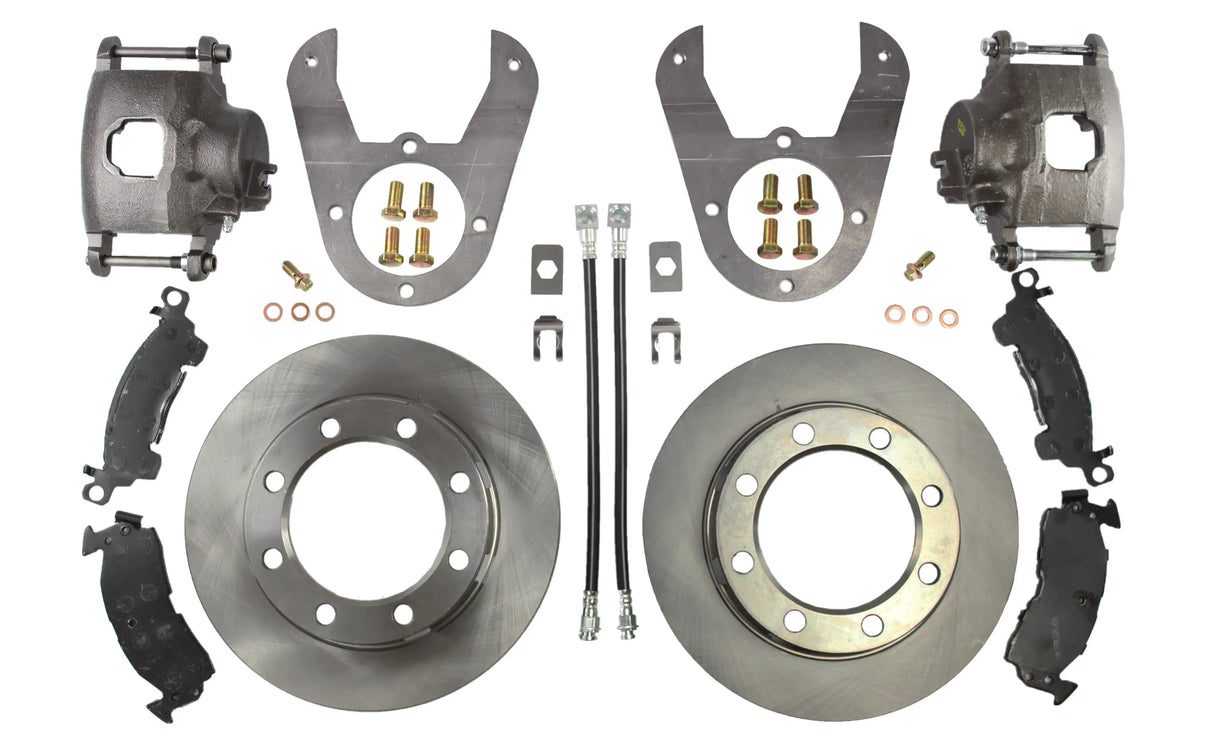

What's Included
1 Pair Dana 70 Ford Disc Brake Brackets (R1115-01 Passenger, R1115-02 Driver)
(2) Weld-On Brake Line Tabs
(2) Brake Line Clips
(2) Brake Calipers
(4) New Brake Pads
(2) New Rotors
(2) Hydraulic Hoses with Banjo Bolt Fittings
Important Notes
Rotor installs behind the hub
May require hub machining (~3/16") for rotor fitment
Studs must drop freely into rotors—do not press fit
Ensure minimum 5/8" lug nut thread engagement
Residual valve must be removed to prevent rear brake drag
Adjustable proportioning valve recommended for proper brake bias
