Complete DIY Rock Slider Kit with Tubing – 72" Length
This 72" DIY rock slider kit is designed for builders who want full-length protection and don’t have access to a bender. Built around 1.75" x .120 wall DOM tubing, it includes everything you need to create a strong, functional set of rock sliders for both sides of your vehicle.
The kit spaces the inner and outer tubes 5.25" apart using 16" long frame legs and includes capped ends cut at a 45° angle for clean finish and strength. It comes with DOM tubing pre-cut to 72" and 62" lengths, frame plates, gussets, and frame tubes—all ready for welding and installation.
Key Features
Part Number: R2253-B
Includes tubing to build 72" rock sliders
Made entirely from 1.75" x .120 wall DOM tubing
3/16" end caps and gussets for strength and support
Frame tubes space the rails 5.25" apart
Covers both driver and passenger side sliders
Kit comes unwelded

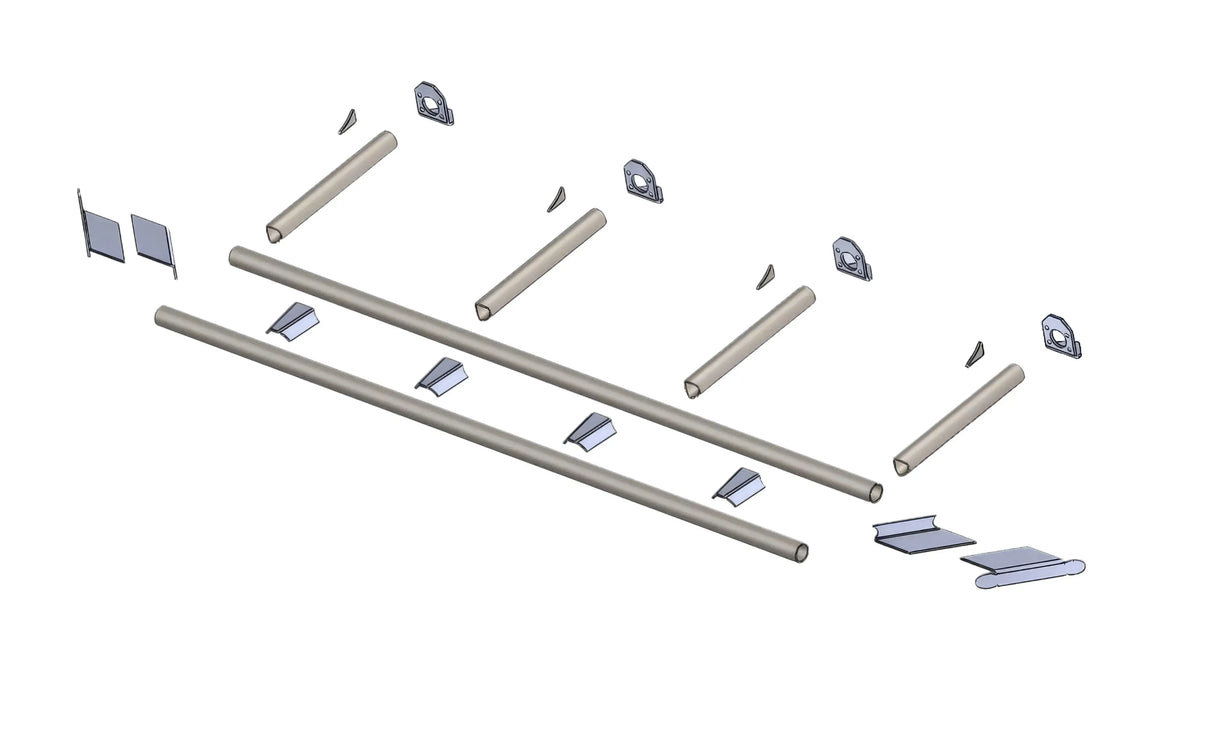

Kit Includes
(4) 3/16" Slider End Cap Brackets
(8) 3/16" Slider Inner Gussets
(8) 1/4" Slider Frame Plates
(8) 1/4" Slider Frame Plate Gussets
(8) 16" Long 1.75" x .120" Wall DOM Slider Frame Tubes
