DIY Rock Sliders 84" Complete DIY Rock Slider Kit with Tubing – 84" Length This 84" DIY rock slider kit is built for maximum coverage and protection. It’s designed for...
Complete DIY Rock Slider Kit with Tubing – 84" Length
This 84" DIY rock slider kit is built for maximum coverage and protection. It’s designed for fabricators who want a full-length slider setup without needing a tube bender. The kit includes everything required to build a strong and functional set of rock sliders for both sides of your vehicle using 1.75" x .120 wall DOM tubing.
Inner and outer slider tubes are spaced 5.25" apart with pre-cut 16" DOM frame tubes. End caps are cut at a 45° angle for strength and clean finish, and the entire kit comes unwelded so you can set it up exactly how you want it.
Key Features
Part Number: R2253-C
Includes tubing to build 84" rock sliders
Made from 1.75" x .120 wall DOM tubing throughout
3/16" end caps and gussets for added durability
Frame legs position rails 5.25" apart
Includes components for both sides of the vehicle
Kit comes unwelded

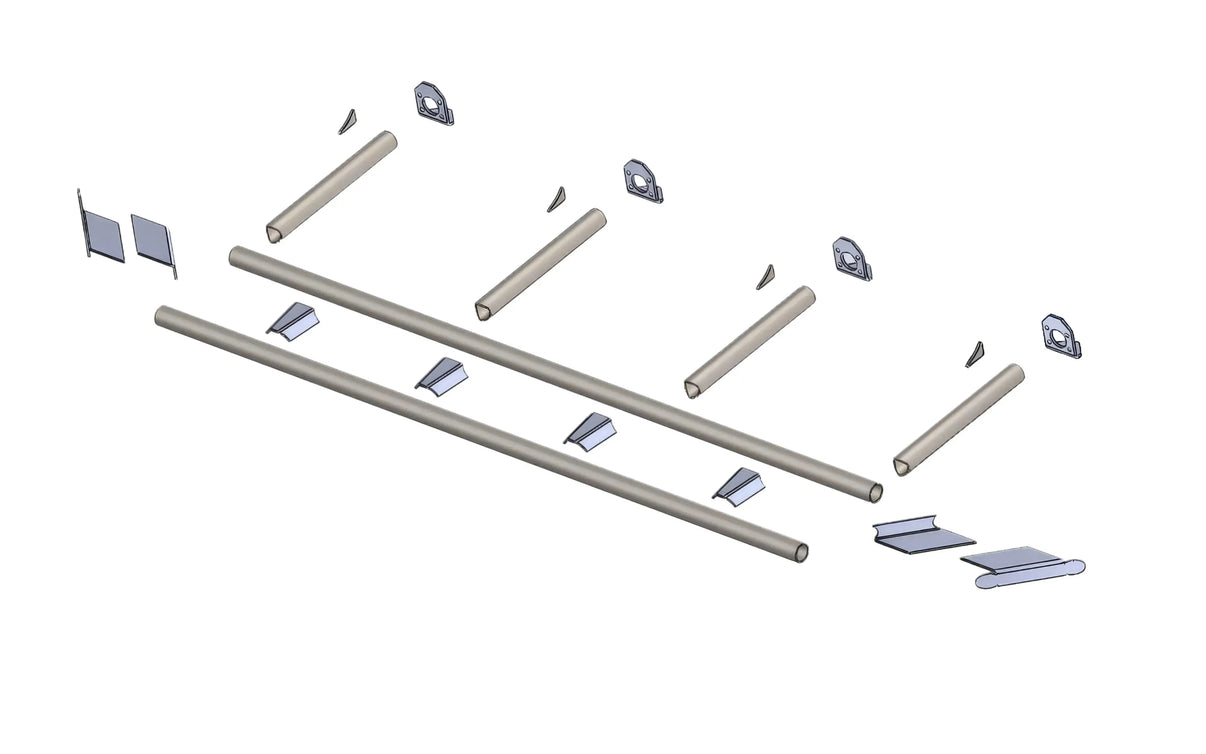

Kit Includes
(4) 3/16" Slider End Cap Brackets
(4) 3/16" Slider Inner Gussets
(8) 1/4" Slider Frame Plates
(8) 1/4" Slider Frame Plate Gussets
(8) 16" Long 1.75" x .120" Wall DOM Slider Frame Tubes
