Complete DIY Rock Slider Kit with Tubing – 93" Length
This 93" DIY rock slider kit is made for full-size rigs or long wheelbase vehicles that need serious side protection. Built from 1.75" x .120 wall DOM tubing, it includes all the components to build strong, trail-ready sliders without requiring a tube bender.
Outer and inner tubes are spaced 5.25" apart using 16" frame legs. The kit features capped ends cut at a 45° angle, along with frame plates and gussets for extra support. All parts come unwelded and are pre-cut to cover both driver and passenger sides.
Key Features
Part Number: R2253-D
Includes tubing to build 93" rock sliders
Made from 1.75" x .120 wall DOM tubing
3/16" end caps and gussets for durability
Frame legs space rails 5.25" apart
Fits long wheelbase or full-size vehicle applications
Includes all components for both sides of the vehicle
Kit comes unwelded

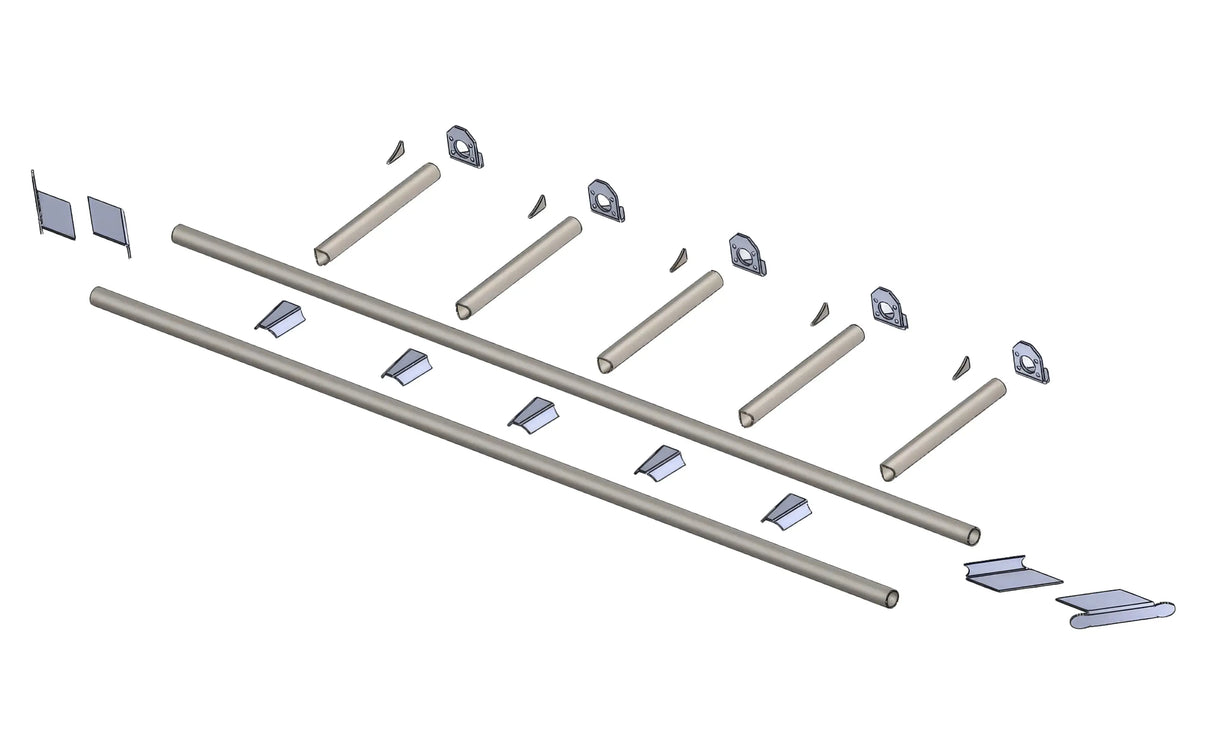

Kit Includes
(4) 3/16" Slider End Cap Brackets
(10) 3/16" Slider Inner Gussets
(10) 1/4" Slider Frame Plates
(10) 1/4" Slider Frame Plate Gussets
(10) 16" Long 1.75" x .120" Wall DOM Slider Frame Tubes
