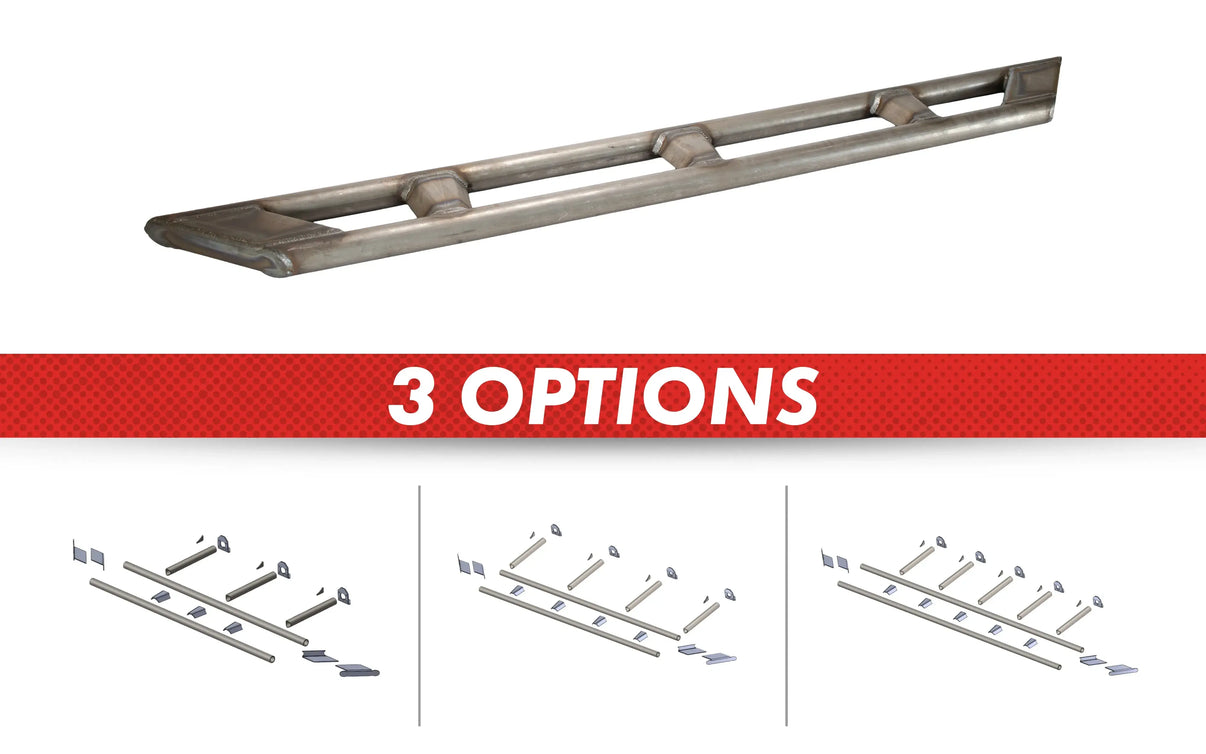

Universal Rock Slider Builder Kit for 1.75" DOM Tubing (No Outer Tubes Included)
This DIY rock slider kit is designed for builders without access to a tube bender. It gives you the core components to create a custom-length rock slider setup using your own 1.75" x .120 wall DOM tubing for the inner and outer slider bars. This approach eliminates the size limitations of pre-bent kits while still giving you strong, trail-ready sliders.
The kit uses 3/16" end caps cut at a 45° angle, 5.25" spacing between tubes, and multiple frame mount legs made from 1.75" DOM with frame plates and gussets. All components come unwelded, and there are enough parts for both sides of the vehicle.
Key Features
Part Number: R2253
Fits a wide range of vehicles—build to any length
Designed for use with 1.75" x .120" wall DOM tubing (not included)
3/16" plate caps and gussets for strength
Leg spacing sets inner and outer tubes at 5.25" apart
Includes DOM frame legs and frame mounting hardware
Kit comes unwelded
Includes enough components for both driver and passenger sides
Kit Includes
(4) 3/16" Slider End Cap Brackets
(6, 8, or 10) 3/16" Slider Inner Gussets
(6, 8, or 10) 1/4" Slider Frame Plates
(6, 8, or 10) 1/4" Slider Frame Plate Gussets
(6, 8, or 10) 16" Long 1.75" x .120" Wall DOM Slider Frame Tubes
