2003+ Common Rail 14Mm Gorilla Girdle W/ Arp Xl Main Studs
This kit includes:

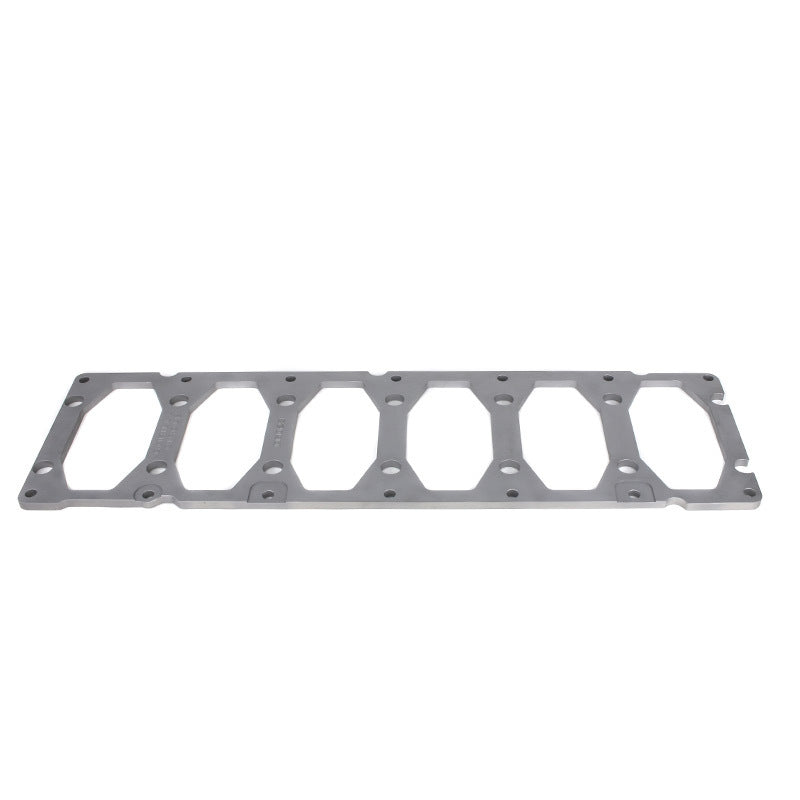

1 Gorilla Girdle
14 top spacers
(Large hole) 12 bottom spacers (small hole) 1 rear main spacer bar
2 rear main stud nuts (12 point)
12 main stud nuts (Nylock)
Before you start. First check the torque on the main studs. 14mm A1, 150 ft lbs
Requires Stamped Oil Pan
Note: On certain 6.7L Cummins engines that come factory with a windage tray instead of a factory girdle you will be required to get the early style longer oil pickup tube bolts as well as an early style oil pickup tube.
We are currently working on a fix for this to prevent any further install issues. Cummins oil pickup tube part number: 3949692 (qty 1) Cummins oil pickup tube bolt part number: 3902460 (qty 2)
