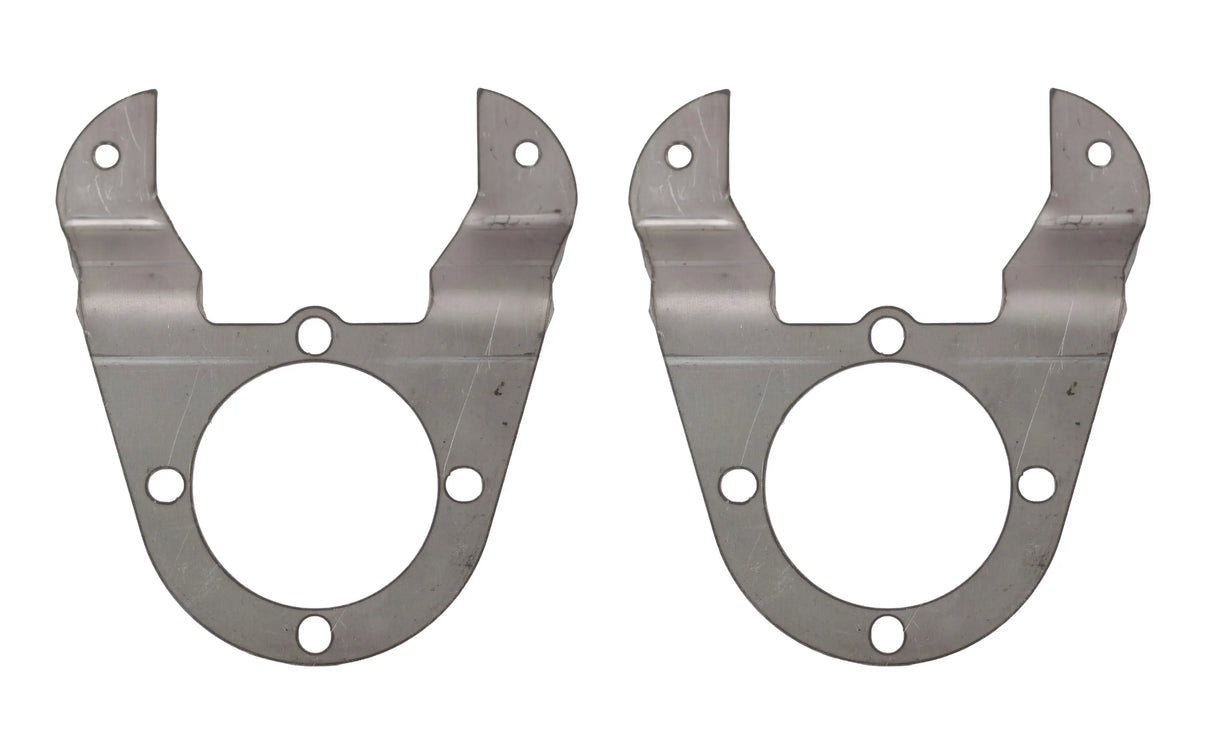

Dodge Dana 70 Disc Brake Bracket Pair (Single Rear Wheel)
Bolt-On Disc Brake Brackets for Dodge Dana 70 SRW Axles
These bolt-on brackets are designed to convert Dodge full-float Dana 70 single rear wheel (SRW) axles to disc brakes using GM components from 1973–1987 3/4-ton Chevy 4x4s. They are compatible with MKD153 pads and both early and late-style 4-bolt flanges. Each bracket is cut from 3/8" steel for strength and rigidity. Requires 15" steel wheels with a maximum of 4" backspacing. Sold as a pair.
This setup is not intended for dual rear wheel (DRW) axles. It works on many Dodge applications, including first-generation Cummins diesel trucks (1981–1993). To confirm fitment, measure from the 4-bolt flange to the back of the wheel hub—the dimension should be about 5.68".
Key Features
Part Number: R2393
Fits Dodge Dana 70 full-floating SRW axles
Uses GM 1973–1987 3/4-ton 4x4 front rotors and calipers
Accepts MKD153 pads
3/8" thick steel construction
Works with early and late 4-bolt flanges
Requires 15" steel wheels with max 4" backspacing
Sold as a pair
Important Notes
For SRW axles only — will not fit DRW
Studs must drop freely into the rotor — do not press them in
Knurl must seat in the hub, not the rotor
If hub studs are oversized, rotors may need to be drilled
Minimum 5/8" lug nut thread engagement required after install
Measure flange-to-hub distance (~5.68") to confirm compatibility
Recommended Components
Calipers: LH - N4674 (late) or N4597 (early), RH - N4673 (late) or N4596 (early)
