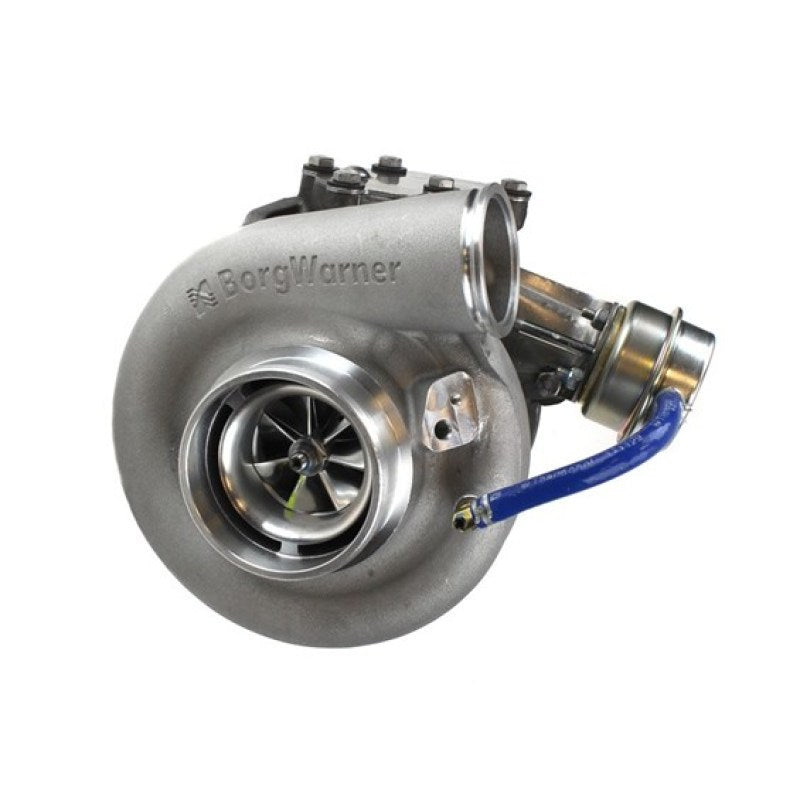

Industrial Injection Model: 362240651AThe original PhatShaft is the perfect replacement turbo. The PhatShaft can be purchased with a 12 or 14 turbine housing matched with a 65mm turbine. We suggest...
The original PhatShaft is the perfect replacement turbo. The PhatShaft can be purchased with a 12 or 14 turbine housing matched with a 65mm turbine.
We suggest a 12 cm turbine housing if the truck is a 12 Valve and has moderate fueling upgrades such as 300hp injectors and a camplate. If the truck has heavier fueling upgrades such as aggressive fueling electronics, large injectors, aggressive camplate and high rev governor springs then you will be better suited with 14cm housing.
The benefit of the 14cm exhaust housing is lower Exhaust Gas Temperatures however, response will be slower in daily driving situations. The original PhatShaft is available in three different compressor sizes, 62mm, 64mm and 66mm.
All three compressors have extended tip technology. The wategate is set at 40psi to prevent head gasket failure on the PhatShaft 62 and 45psi on the PhatShaft 64 and 66. All PhatShaft turbochargers are equipped with dual grooved bearings and an adjustable boost elbow.
The PhatShaft 62 is the perfect replacement turbo for towing. The PhatShaft 62 can be purchased with a 12 or 14 turbine housing matched with a 65mm turbine.
The benefit of the 14cm over the 12cm exhaust housing is lower Exhaust Gas Temperatures but it will be slower to spool in daily driving situations. The wategate is set at 40psi to prevent head gasket failure.
The 62 is very close to being a drop in replacement however, a HX40 downpipe is required for installation
