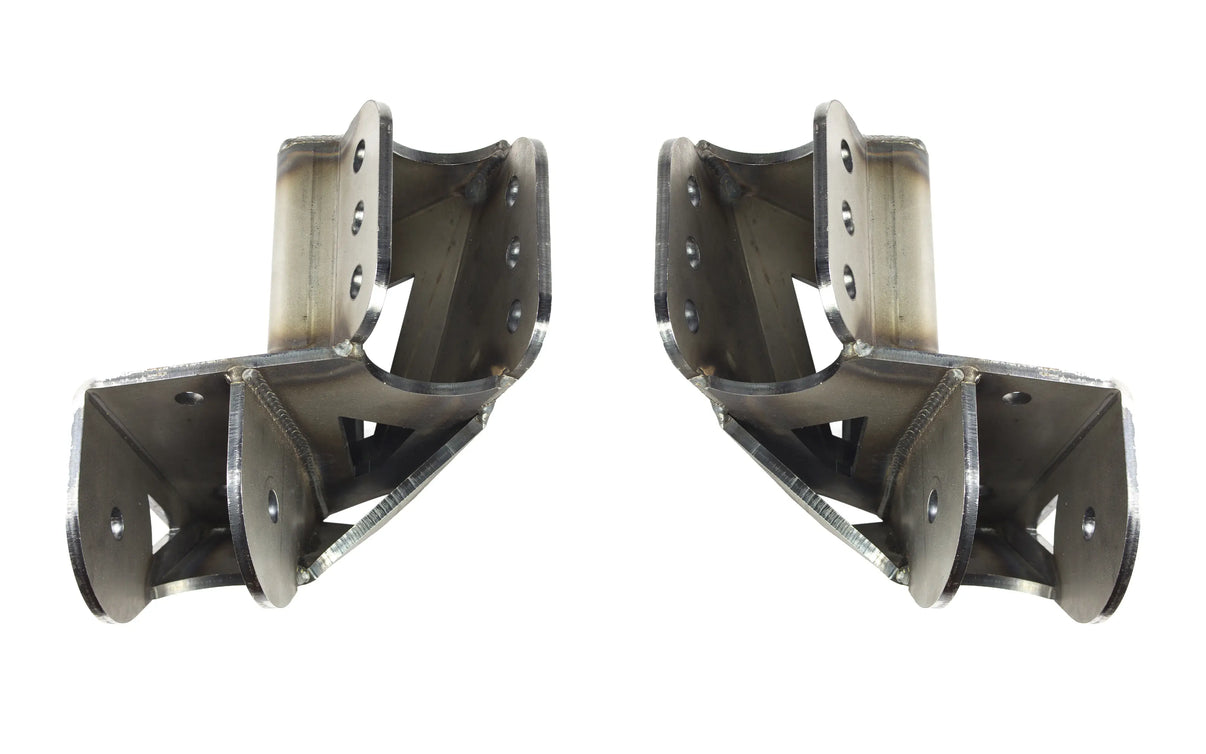

Dual Mount Adjustable 4 Link Brackets Upper and lower link mounts combined into one bracket This bracket simplifies frame-side mounting for upper triangulated 4-link setups by combining both the upper...
Upper and lower link mounts combined into one bracket
This bracket simplifies frame-side mounting for upper triangulated 4-link setups by combining both the upper and lower link mounts into a single structure. The combined design adds strength by tying both mounts together, reducing flex and improving durability. It must be installed on a boxed frame—C-channel frames will need to be boxed before installation.
Adjustable upper link holes allow fine-tuning of link separation and angle to dial in your suspension geometry. At just under 5" tall from the bottom of the frame, this bracket fits tight frame setups like the TJ and YJ without requiring a body lift. It's designed with a 10° lower and 25° upper angle for proper triangulation and includes plug weld holes for added strength or bolt-on use.
Key Features
Part Number: R2228
Sold in pairs
Designed for upper triangulated 4-link suspension setups
10° angle on lower mounts, 25° on upper (±10° depending on joint)
2-5/8" mounting width for 1.25" heims or joints
9/16" mounting holes
3", 4.25", or 5.5" vertical separation on upper link
1/2" plug weld holes on side and bottom
Optional fully welded version
Fits TJ/YJ Wrangler frames and other similar boxed frames
