EFI Throttle Body Intake Elbow 4150 - Fits Ford Throttle Bodies-Black Finish

EFI Throttle Body Intake Elbow-Black Finish

EFI Throttle Body Intake Elbow 4150 - Fits Ford Throttle Bodies

Overview

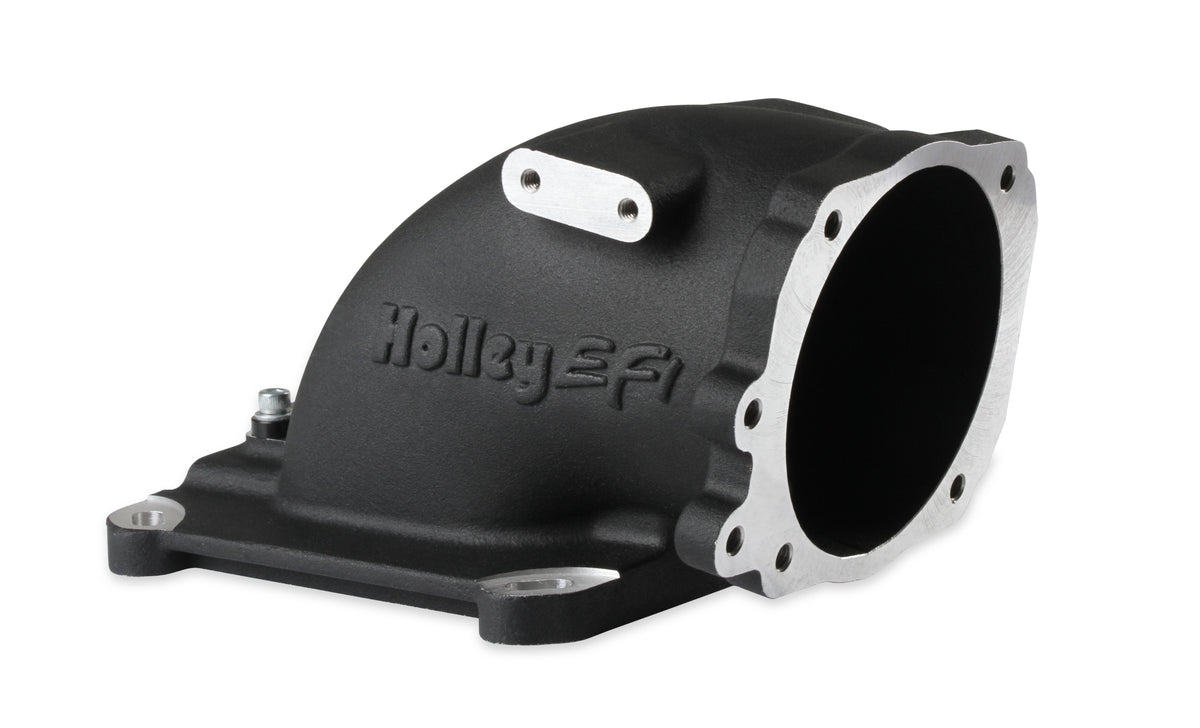

This cast EFI intake elbow allows the use of Ford throttle bodies on any intake manifold w/ the 4150 mounting flange. Slotted mounting holes dual throttle cable mounting bracket bosses allow the elbow throttle body to be mounted forward, sideways, or rearward. Features (4) vacuum ports, MAP sensor port, machined / port matched to 4150 gasket, and 100?? throttle body angle for extra hood clearance. Includes MAP sensor port cover, gaskets, throttle cable bracket, and hardware.

Features:

• Fits Ford 5.0 Throttle Bodies
• 105mm Throttle Body Opening - 100 Mounting Angle
• Fits Intakes w/ 4150 Flange
• Slotted Mounting Holes Allow Forward, Sideways or Rearward Throttle Body Mounting
• LS3 Style MAP Sensor Mounting
• (4) Vacuum Ports ???? (1) Each 1/4??? NPT 3/8??? NPT (2) 1/8??? NPT w/ Indirect Baffled Signal
• (2) Throttle Linkage Mounting Bosses
• Sand Cast w/ Black Finish
• Overall Height 5.12???

Details:

• Construction: Cast
• Finish: Black
• Fuel System Type: EFI
• Throttle Bore: 105mm
• Warranty: Limited 90 Day
