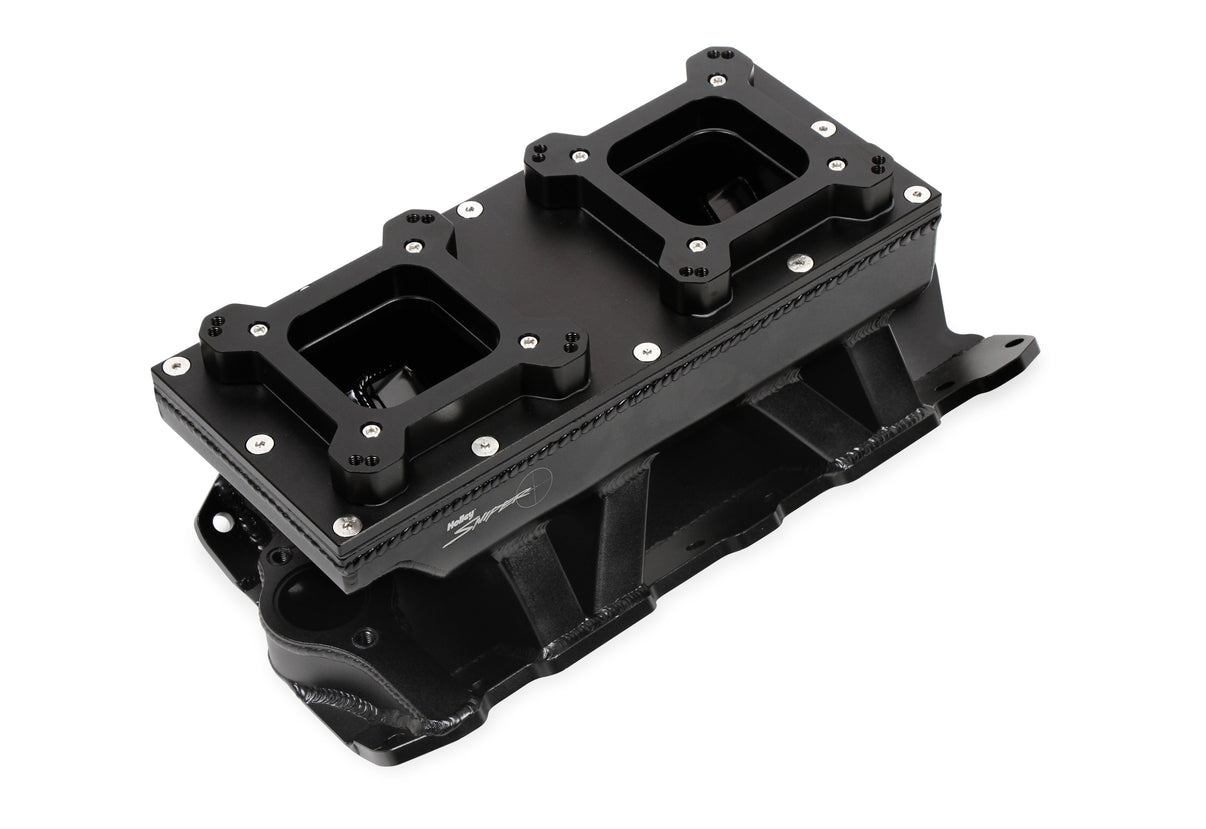

Fabricated Intake Manifold SBC Single Plane Carbureted (2 x 4150 style flange changeable plate) Black with Sniper logo

Sniper Sheet Metal Fabricated Intake Manifold Small Block Chevy

SBC Dual Quad Single Plane Carbureted Silver with Sniper Logo

Overview
Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions!

Features:

• Expanded Designs to accommodate (1 x 4150) & (2 x 4150) carbureted applications for GM LS7, Ford 4.6L 3-valve Mod-Motor, and Ford 5.0L Coyote platforms
• NEW Modular??? Removable Top Plates options for Small Block Chevy now available (1 x 4150, 2 x 4150, and 1 x 4500 flange options)
• 3mm (1/8") thick T6061 Sheet Aluminum construction, strong and durable even under high horsepower and boosted conditions
• 100% TIG welded
• EFI Intakes include 3/8" Fuel rail kits with -8A fittings and crossover braided line capable of supporting 750+ horsepower (w/ laser engraved Sniper EFI logo)
• Runner lengths with tapered top on EFI intakes designed to increase velocity and more evenly distribute airflow to all 8 cylinders
• Available in Silver and Black Finishes

Details:

• Carb Flange Center-to-Center: 8.50"
• Construction: Fabricated
• Engine: Chevrolet Small Block Gen I
• Finish: Black
• Flange Size: 4150
• Front Height: 8.503 inch
• Port Size: 1.90" x 1.15"
• Rear Height: 8.503 inch
• RPM Power Band: 1800-7000 RPM
• Style: Carbureted
• Vacuum Ports: None
• Warranty: Limited 90 Day

Links
Instruction Sheet
