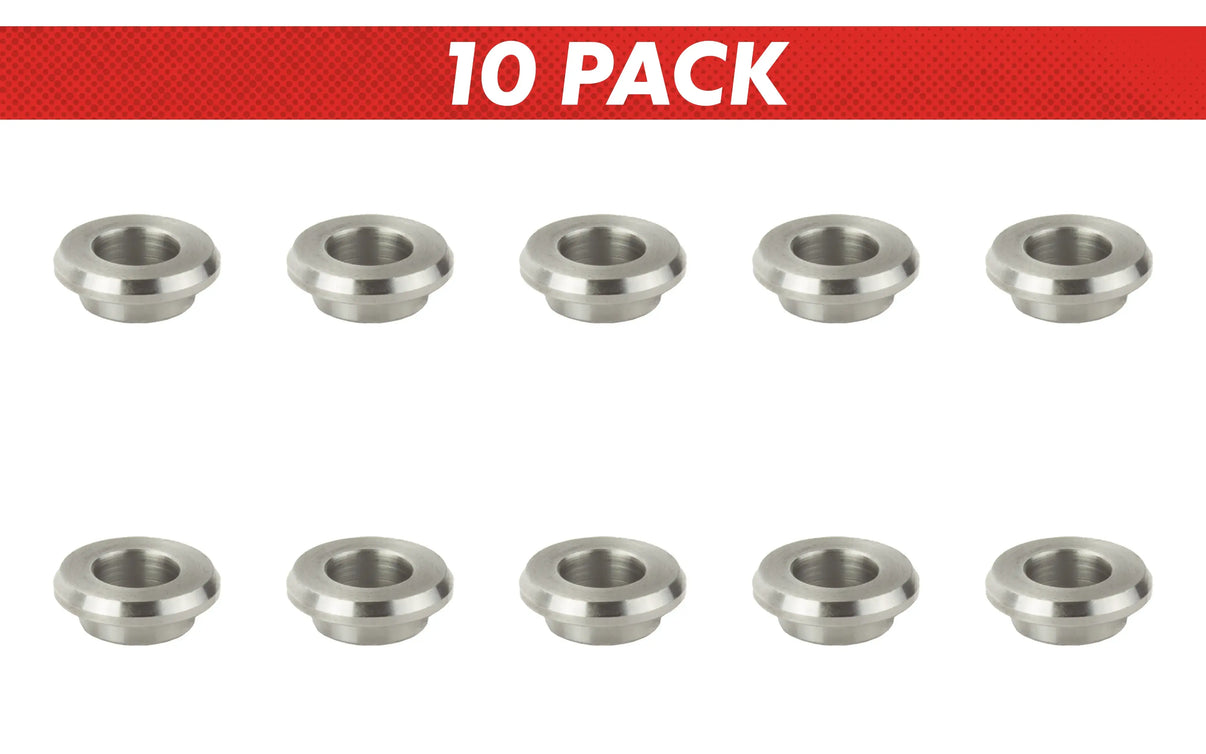

Fix It Weld Washers — 10 Pack Weld-in step washers for repairing ovaled mounting holes These weld washers repair elongated or damaged bolt holes by adding a precision, weldable seat....
Weld-in step washers for repairing ovaled mounting holes
These weld washers repair elongated or damaged bolt holes by adding a precision, weldable seat. Each washer has a 1/4" step so the outer diameter drops 1/4" into the drilled hole for positive location. Designed for use on 1/4" thick plate and sold in packs of 10.
Select the washer size to match your bolt, then drill the hole per the guide below so the stepped OD seats correctly. Fit the washer into the hole, verify alignment, and weld fully around the perimeter to restore a round, tight bolt bore. This process provides a durable, centered mount without replacing the whole bracket or plate.
Key Features
Part Number: R1321
1/4" step depth; OD seats 1/4" into hole
For 1/4" thick plate
Quantity: 10 washers per set
Available Sizes
1/2"
9/16"
5/8"
3/4"
Drill Size Guide
For 1/2" bolt: drill 3/4" hole
For 9/16" bolt: drill 3/4" hole
For 5/8" bolt: drill 7/8" hole
For 3/4" bolt: drill 7/8" hole
Note
Intended for 1/4" plate only; confirm the 1/4" step seats fully in the drilled hole before welding. Use the drill sizes listed to ensure proper fit and alignment. Weld completely around the washer to restore hole roundness and strength.
