Flat Long Link Tab 3/8" steel long tab for flat truss/frame mounts with 9/16" bolt hole This flat long link tab mounts to trusses, frames, or any flat surface where...
3/8" steel long tab for flat truss/frame mounts with 9/16" bolt hole

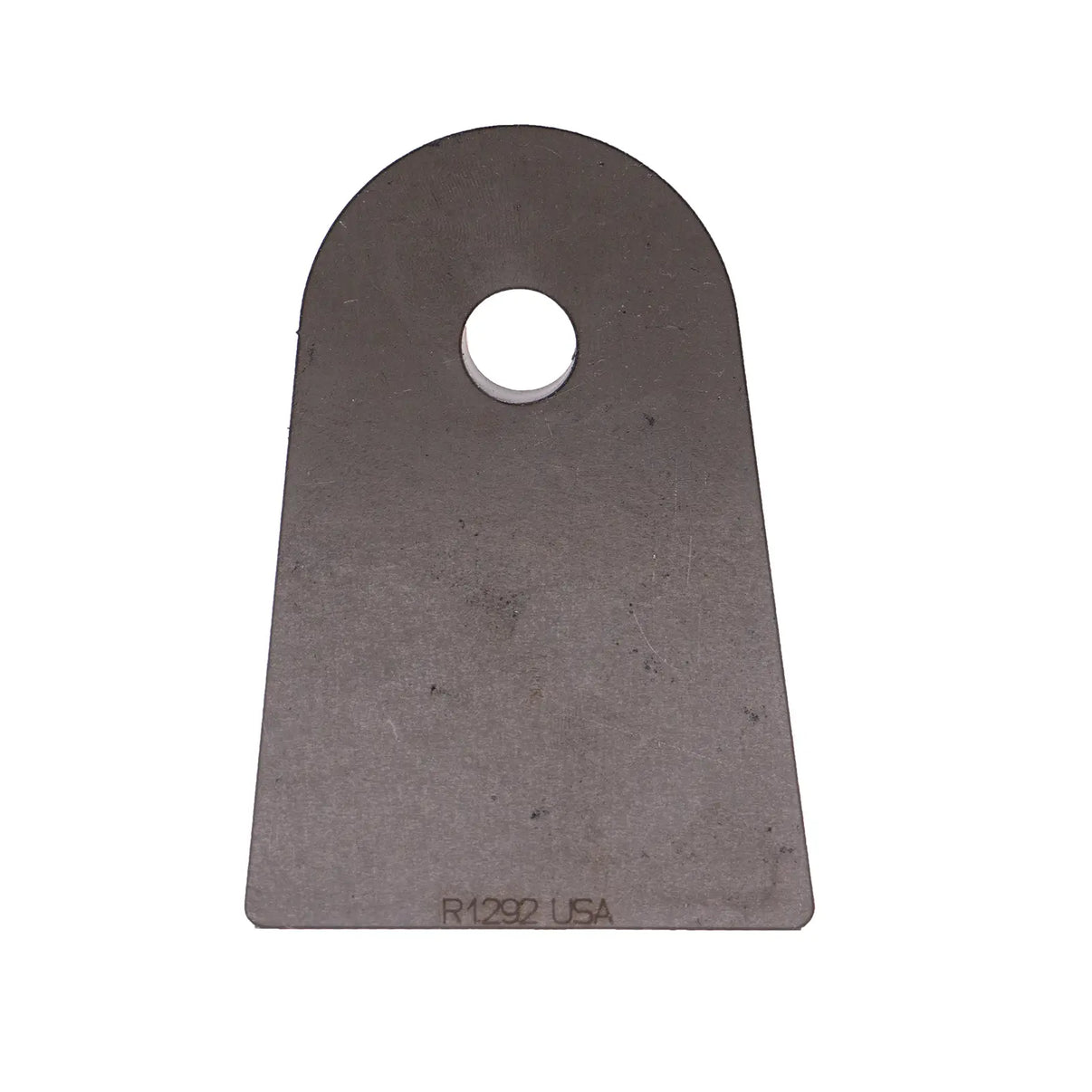

This flat long link tab mounts to trusses, frames, or any flat surface where a straight weld pad is available. It is .375" (3/8") thick to match the strength of paired 1/4" link brackets. The geometry places the bolt centerline 3.125" from the mounting face for added reach and packaging flexibility.
Use a single tab for 3-link layouts or pair and bridge two tabs to create a double-shear mount. Combine with our other tab heights to set your desired link angle without cutting into the bracket. The .5625" (9/16") hole can be reamed to another size if needed; maintain proper edge distance and use correct hardware torque.
Key Features
Part Number: R1292
Material thickness: .375" (3/8") steel
Bolt hole: .5625" (9/16")
Centerline distance: 3.125" from mounting face
Flat profile for truss/frame weld-on applications
Works singly or paired for double-shear
Sold individually
Note
Weld-on installation only; mock up with spacers and cycle suspension to verify clearance at bump and droop. If resizing the hole, ream true and preserve edge distance to maintain strength.
