Flat Medium Link Tab 3/8" steel medium tab for flat truss/frame mounts with 9/16" bolt hole This flat medium link tab mounts to trusses, frames, or any flat surface where...
3/8" steel medium tab for flat truss/frame mounts with 9/16" bolt hole

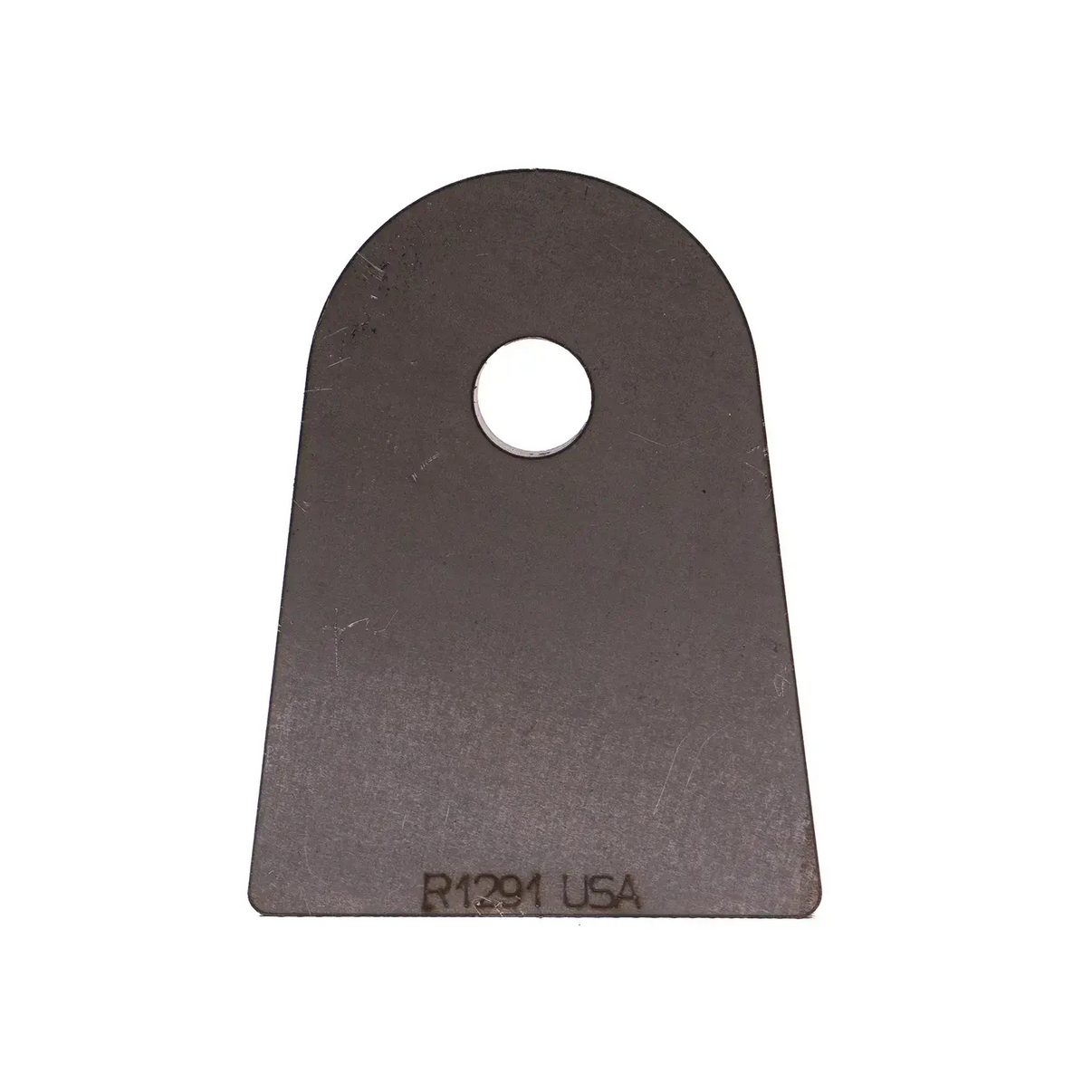

This flat medium link tab mounts to trusses, frames, or any flat surface where a straight weld pad is available. It is .375" (3/8") thick to match the strength of paired 1/4" link brackets. The bolt centerline sits 2.625" from the mounting face to provide the standoff needed for common link geometry.
Use a single tab for 3-link layouts or pair and bridge two tabs to create a double-shear 4-link bracket. The .5625" (9/16") hole fits typical 1.25" joint hardware and can be reamed to another size if required. Mix with other tab heights to set your link angle without cutting into the bracket.
Key Features
Part Number: R1291
Material thickness: .375" (3/8") steel
Bolt hole: .5625" (9/16")
Centerline distance: 2.625" from mounting face
Flat profile for truss/frame weld-on applications
Works singly or paired for double-shear
Sold individually
Note
Weld-on installation only; tack in place, cycle suspension to verify clearance, then weld fully. If resizing the hole, ream true and maintain edge distance to preserve strength.
